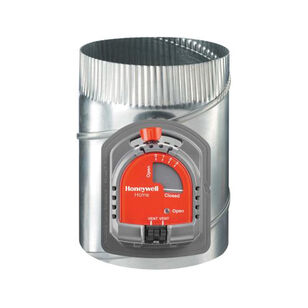

Honeywell EEARD8TZ Zone Damper, Round, 71 in-oz
Honeywell EEARD8TZ Zone Damper, Round, 71 in-oz
Honeywell Zone Damper, EARD Series, Single Blade, Push Terminal Electrical Connection, 10 s De-Energized, 30 s Energized Timing, 71 in-oz Torque, Steel, Finish: Galvanized, Multipoise Mounting, Power Open, Spring Closed Motor, Motor Specifications: 24 VAC at 60 Hz, 8 VA, Round Shape, 1 in-WC, 40 to 140 deg F, 10 in Length
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$407.45Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
ApplicationFor ventilation damper
Blade TypeSingle
Diameter8"
Electrical ConnectionPush Terminal
FinishGalvanized
Frequency Rating60 Hz
Height4-41/64"
Length10
MaterialSteel
Motor Specifications24 VAC at 60 Hz, 8 VA
Motor TypePower Open, Spring Closed
Mounting TypeMultipoise
Number of Blades1
Pressure Drop0.0329"-WC
Pressure Rating1
SeriesEARD Series
ShapeRound
Temperature Rating40 to 140
Timing Range10 s De-Energized, 30 s Energized
Torque Rating71
VA Rating8 VA
Voltage Rating24 V
Width4-31/32"
Features & Benefits
- Adjustable damper position range stops One blade damper Shipped as power open/spring return closed damper Quiet operation Can be field converted to power closed or spring return open damper Blade closes off tightly against gasket for minimal leakage Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct Simple, easy-to-wire, two wire installation
Documents
Marketing Information
The EARD is a power open and spring closed fresh air damper. It has a 24 V motor used to control circulating air-in fresh air ventilation. The EARD is typically controlled by an IAQ thermostat or other whole-house ventilation control.
