PHD
PHD 141-0400EG NFPA SWV RING HANGER
PHD
PHD 141-0400EG NFPA SWV RING HANGER
MFG #141 0400EG
Item #848321
Mfr. Part #141 0400EG
UPC #848743000099

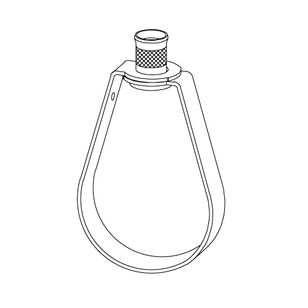

PHD Swivel Ring Band Hanger, Fig 141 Series, 4 in Pipe, 3/8 in Rod, 650 lb Load, Steel, Finish: Pre-Galvanized, 7-5/16 in Overall Length, For Use With: Non-Insulated Stationary Pipe Lines
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$21.46Â /Â ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandPHD
FinishPre-Galvanized
IndustryPlumbing
Load Capacity650
MaterialSteel
Overall Length7-5/16
Pipe Size4
Rod Size3/8
SeriesFig 141 Series
Suitable For Use WithNon-Insulated Stationary Pipe Lines
Additional Information
ANSI/MSS SP-58 Type 10|ANSI/MSS SP-69|cUL Listed|Factory Mutual Approved|Federal Specification A-A-1192A Type 10|NFPA Certified|UL Listed
Documents
Marketing Information
Designed for the suspension of non-insulated stationary pipe lines. The knurled insert nut that allows a vertical adjustment after installation, is tapped to NFPA reduced rod size standards. Captured knurled insert nut present on pipe sizes 1/2 in (15 mm) to 2 in (50 mm). The capture is permanent in the bottom portion of the band, allowing the hanger to be opened during installation if desired, but preventing the knurled insert nut from falling completely out. Fig. 141F has a layer of felt which separates the pipe from the hanger to reduce vibration and sound.
