ANSI Z358.1 Specified|CSA Certified|Low Lead Certified

• Maximum supply temperature 180 deg F Maximum supply pressure 125 psi

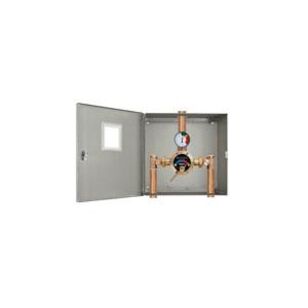

ECO-MIX™ DURA-trol® solid bi-metal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature and pressure fluctuations. DURA-trol® is highly responsive and cannot be damaged by extremes in temperature. Thermostatic mixing valve can be set to the correct temperature for the application. Locking-type temperature regulator to prevent accidental movement set for 85 deg F, recommended hot inlet temperature 140 deg F. Mixing valve will close down on failure of cold water supply, mixing valve with special internal cold water bypass capable of 20 gpm at 30 psi upon failure of hot water supply. Adjustable high-temperature limit stop set for 90 deg F, integral wall support, full 1 in bottom or top inlets and 1-1/4 in top outlet, dial thermometer (range 0 to 140 deg F), rough bronze finish, exposed stainless steel cabinet with hinged door and cylinder lock, single check stops on inlets to determine the amount of hot water needed to maintain a steady outlet temperature for 15 min, click hot water requirements. This guide is not meant to be used as a means to size the hot water heaters but rather to illustrate consumption. This product provides tepid water per the requirements of ANSI Z358.1 This product is certified to meet low lead requirements of wetted surface area containing less than 0.25% lead by weight.
