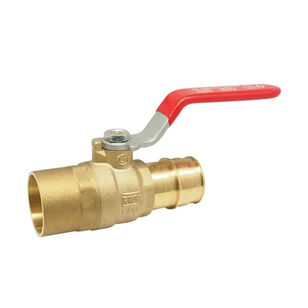

RWV® 004-46385 Transition Ball Valve, 3/4 in, PEX x Solder, DZR Brass, 300 psi
RWV® 004-46385 Transition Ball Valve, 3/4 in, PEX x Solder, DZR Brass, 300 psi
RWV® Transition Ball Valve, 3/4 in Nominal, PEX x Solder Connection, Full Port, 300 psi, Pressure Class: 400 lb, Gas, Oil, Water Media, 2.93 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B927 C27453, DZR Brass Body, PTFE Seat, Brass Stem, NBR Seal, NBR Packing, Steel Handle, Brass Ball, NBR Softgoods, Lead-Free, 15 to 160 deg F, Additional Information: 2-Piece
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$35.97 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
Additional Information2-Piece
ApplicationFor PEX tubing
Ball MaterialBrass
Body MaterialDZR Brass
Connection TypePEX x Solder
Dimensions3.58" L
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.93
Lead-FreeYes
Material StandardASTM B927 C27453
MediaGas, Oil, Water
Nominal Size3/4
Opening Size0.877 to 0.881"
Operator TypeLever Handle
Orifice Size1/2"
Packing MaterialNBR
Port TypeFull
Pressure Class400
Pressure Rating300
Seal MaterialNBR
Seat MaterialPTFE
Series5017AB Series
Softgoods MaterialNBR
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center1.77
Trim MaterialPTFE
Additional Information
AB1953 Certified|CSA B125.3|NSF/ANSI 61/372
Features & Benefits
- F1960 Full Port Virgin PTFE Seats Double NBR O-ring Packing Blow-Out Proof Stem For Use with PEX Tubing
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
RWV® 004-46385 Transition Ball Valve, 3/4 in, PEX x Solder, DZR Brass, 300 psi
BrandRWV®
MFG #5017AB 3/4
Keller #850490
My Part ##
Last Ordered#
$35.97 / ea
