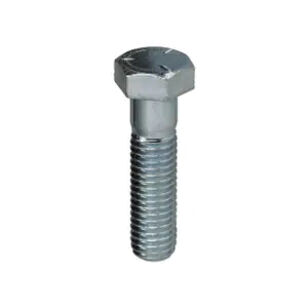

Dottie® 5MB38112 Cap Screw, 3/8-16 Thread, UNC Thread, 1-1/2 in OAL, Carbon Steel, Zinc-Plated, Grade 5 Grade
Dottie® 5MB38112 Cap Screw, 3/8-16 Thread, UNC Thread, 1-1/2 in OAL, Carbon Steel, Zinc-Plated, Grade 5 Grade
Dottie® Cap Screw, 3/8-16 Thread, UNC Thread, 1-1/2 in Overall Length, 9/16 in Head, Hex Head, Grade 5 Grade, HRC 34-25 Hardness, 120000 psi Tensile, Carbon Steel, Zinc-Plated, Additional Information: 0.562 to 0.551 in Dia x 0.243 to 0.226 in H Head, Partial Thread Style, Chamfered Point Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$0.87 / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandDottie®
Additional Information0.562 to 0.551 " Dia x 0.243 to 0.226 " H Head, Partial Thread Style, Chamfered Point Type
ApplicationIndustrial Strength Applications, High Controlled Clamp Forces and High Load Requirements Applications
FinishZinc-Plated
GradeGrade 5
HardnessHRC 34-25
Head Size9/16
Head TypeHex
MaterialCarbon Steel
Overall Length1-1/2
Tensile Strength120000
Thread Size3/8-16
Thread TypeUNC
Shipping Dimensions (L x W x H)6.1" x 4.8" x 2.9"
Additional Information
ASME B1.1|ASME B18.2.1|ASTM F1941/F1941M-2016|RoHS Compliant|SAE J429-2014
Marketing Information
Grade 5 hex cap screws are made from carbon steel and are used in applications where medium strength is necessary, typically those where controlled clamp force and high loads are required. These screws can be screwed into internally tapped holes or used with a nut. Grade 5 hex cap screws should always be used with a hardened washer under the turned component. SAE J429 covers the material and performance requirements of grade 5 hex cap screws and ASME B18.2.1 covers the dimensional requirements.
Dottie® 5MB38112 Cap Screw, 3/8-16 Thread, UNC Thread, 1-1/2 in OAL, Carbon Steel, Zinc-Plated, Grade 5 Grade
BrandDottie®
MFG #5MB38112
Keller #851560
My Part ##
Last Ordered#
$0.87 / ea
