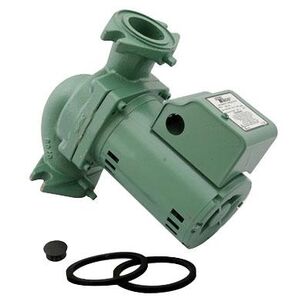

Taco Comfort Solutions® 2400 Series 2400-30S-3P Circulator Pump, 90 gpm, 115/230 V, 1.9/1 A, 60 Hz, 150 psi Max Pressure
Taco Comfort Solutions® 2400 Series 2400-30S-3P Circulator Pump, 90 gpm, 115/230 V, 1.9/1 A, 60 Hz, 150 psi Max Pressure
Taco Comfort Solutions® Circulator Pump, 2400 Series, 90 gpm Flow Rate, 46 ft Maximum Head, 115/230 V, 1.9/1 A, 60 Hz, 150 psi Maximum Pressure, 3450 rpm Motor Speed Rating, 1/6 hp, 1-1/4 x 1-1/2 in Connection, NPT Flanged x Sweat Connection, 1 ph Phase, In-Line Mounting, 40 to 225 deg F, Open Drip-Proof Enclosure, Ball Bearing, Stainless Steel, 8-1/2 in H x 8 in W x 4-3/4 in D, Additional Information: Glass-Filled Noryl Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,415.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationGlass-Filled Noryl Impeller Material
Amperage Rating1.9/1
Bearing TypeBall
Connection Size1-1/4 x 1-1/2
Connection TypeNPT Flanged x Sweat
Dimensions8-1/2 " H x 8 " W x 4-3/4 " D
Enclosure TypeOpen Drip-Proof
Flow Rate90
Frequency Rating60
HP Rating1/6
IndustryHydronics
MaterialStainless Steel
Maximum Head46
Maximum Pressure150
Motor Speed Rating3450
Mounting Type"-Line
Phase1
Series2400 Series
Temperature Rating40 to 225
Voltage Rating115/230
Additional Information
ANSI/NSF 372|cUL Listed
Features & Benefits
- Compact, space saving design Powerful close coupled, maintenance free motor Superior efficiency, high starting torque Permanently lubricated, sealed for life bearings Rugged 1/2 in stainless steel shaft Carbon/silicon-carbide mechanical seal for long life Universal flange to flange dimensions Anti-condensate design for chilled water Dual electrical knockouts Dual pressure taps, suction/discharge
Marketing Information
Taco 2400 series high capacity circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, Noryl impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in cast iron or stainless steel construction.
