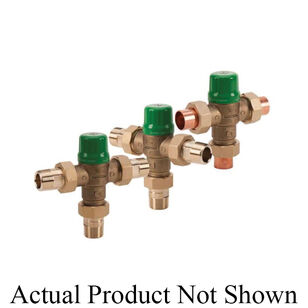

Taco Comfort Solutions® 5120 Series 5124-C2 Mixing Valve, 1 in, Solder, 14 gpm, 200 psi, Brass, Lead-Free
Taco Comfort Solutions® 5120 Series 5124-C2 Mixing Valve, 1 in, Solder, 14 gpm, 200 psi, Brass, Lead-Free
Taco Comfort Solutions® Mixing Valve, 5120 Series, 1 in Nominal, Solder Connection, 14 gpm Flow Rate, 200 psi, 1.8 Cv Flow Coefficient (Cv), Stainless Steel Trim, EPDM Packing, FKM Seal, Brass, +/-3 deg F Gauge Accuracy, 4 in Top to Inlet Center, Check Valve, Lead-Free, 85 to 120 deg F, 6.1 in H x 5.4 in W, Additional Information: 4 in Inlet to Mixing Outlet Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$242.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional Information4 " Inlet to Mixing Outlet Dimensions
Connection TypeSolder
Dimensions6.1 " H x 5.4 " W
Flow Coefficient (Cv)1.8
Flow Rate14
Gauge Accuracy+/-3
IndustryHydronics
Lead-FreeYes
MaterialBrass
Nominal Size1
Packing MaterialEPDM
Pressure Rating200
Seal MaterialFKM
Series5120 Series
Temperature Rating85 to 120
Top to Inlet Center4
Trim MaterialStainless Steel
Valve TypeCheck
Additional Information
ASSE 1017/1070|CSA B125.3|cUPC Certified|NSF/ANSI 61
Features & Benefits
- Lead-free Lockable max temperature setting Outlet temperature strip
Marketing Information
The versatile 5120 series lead-free mixing valve (NSF 61, ASSE 1017 and ASSE 1070 certified) provides the ultimate performance for domestic hot water applications. The 5120 series lead-free mixing valve ASSE 1017 certification allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120 deg F or less. The design and advanced thermostatic element ensures a stable mixed water temperature throughout the valve's adjustable range. The ASSE 1070 listing allows for point of use applications in homes, hospitals, schools, nursing homes and public facilities and more, where a 1070 valve is required.
Taco Comfort Solutions® 5120 Series 5124-C2 Mixing Valve, 1 in, Solder, 14 gpm, 200 psi, Brass, Lead-Free
BrandTaco Comfort Solutions®
MFG #5124-C2
Keller #853769
