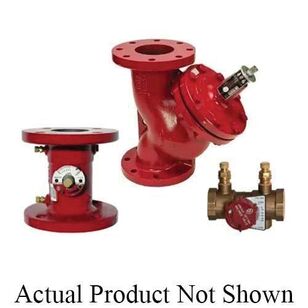

Bell & Gossett Circuit Setter Plus® CB-3LF 117107LF Calibrated Balance Valve, 3 in, NPT, 400 psig, Brass, Lead-Free
Bell & Gossett Circuit Setter Plus® CB-3LF 117107LF Calibrated Balance Valve, 3 in, NPT, 400 psig, Brass, Lead-Free
Bell & Gossett Circuit Setter Plus® Calibrated Balance Valve, Model: CB-3LF, 3 in Nominal, NPT Connection, 400 psig, EDPM Stem, Carbon/Glass Filled PTFE Seat, Brass, 6-1/2 in Inlet to Outlet Length, Lead-Free, -4 to 250 deg F, 6.5 in L x 5.12 in W x 5.44 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,600.33 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Connection TypeNPT
Dimensions6.5 " L x 5.12 " W x 5.44 " H
IndustryPlumbing
Inlet to Outlet Length6-1/2
Lead-FreeYes
MaterialBrass
ModelCB-3LF
Nominal Size3
Pressure Rating400
Seat MaterialCarbon/Glass Filled PTFE
Stem MaterialEDPM
Temperature Rating-4 to 250
Additional Information
NSF/ANSI 372
Features & Benefits
- Proportional and pre-balance design capabilities Externally adjustable manual balance valve for easy adjustment Memory stop indicator Positive shut-off capability
Documents
Marketing Information
The Bell & Gossett Circuit Setter Plus is a calibrated balance valve designed for pre-set proportional system balance. Since its introduction to the HVAC industry in 1968, the Bell & Gossett Circuit Setter has set the standard for proportionally balancing hydronic HVAC systems. This system balance method, developed by Bell & Gossett, assures optimum system flow balance at minimum pump operating horsepower. Valves can simply be pre-set using the B&G Circuit Setter Balance Valve Calculator, curve booklet G10091, or the System Syzer application for iPhone, iPad, or PC. Circuit Setters are available in a wide range of sizes and styles to meet all your system demands. Brass valves, in sizes 1/2 through 3 in, utilize a full port ball valve with calibrated nameplate and feature a memory stop and two integrated pressure/temperature ports for easy ∆P measurement. Additionally, All brass Circuit Setters are CSA certified to be in compliance with the low lead requirements of California, Vermont, Maryland, Louisiana, and NSF//ANSI 372.
Bell & Gossett Circuit Setter Plus® CB-3LF 117107LF Calibrated Balance Valve, 3 in, NPT, 400 psig, Brass, Lead-Free
BrandBell & Gossett
MFG #117107LF
Keller #854089
My Part ##
Last Ordered#
$1,600.33 / ea
