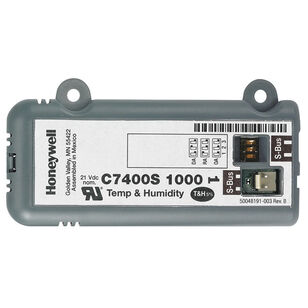

Honeywell C7400S1000/U Enthalpy Sensor, -40 to 150 deg F, 7 to 21 VDC, 5 mA
Honeywell C7400S1000/U Enthalpy Sensor, -40 to 150 deg F, 7 to 21 VDC, 5 mA
Honeywell Enthalpy Sensor, -40 to 150 deg F, 10 to 90% RH Non-Condensing Humidity, 7 to 21 VDC, 5 mA, Gray, Dimensions: 4-1/4 in H x 2.17 in W x 0.81 in D, For Use With: S-Bus Devices and W7220 Economizer Controller
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$171.67Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Amperage Rating5
ColorGray
Dimensions4-1/4 " H x 2.17 " W x 0.81 " D
Humidity Rating10 to 90% RH Non-Condensing
IndustryHVAC
Suitable For Use WithS-Bus Devices and W7220 Economizer Controller
Temperature Rating-40 to 150
Voltage Rating7 to 21
Additional Information
EN61000-6-3, EN61000-3-2, EN61000-3-3, EN61000-6-1, CE Certified, C/US UL Listed
Features & Benefits
- Outputs a digital communicating signal on a 2-wire Sylkbus communications link, reporting the temperature and humidity separately to the controller The controller determines the enthalpy (total heat), enabling economizer modes of operation when outside air enthalpy is suitable for free cooling Enthalpy sensors are compatible with Honeywell economizer systems When used with an economizer, the enthalpy boundary curve is programmed via the controller, when the temperature and humidity are determined to be suitable based on the relationship to the boundary, the controller allows outside air for economizing Dual enthalpy sensors in outside air and return switches the controllers to economizer mode of operation anytime the outside enthalpy is less than the return air enthalpy Mounted in any position where it is exposed to freely circulating air Two-pin header pin-style or two-pin card edge removable terminal blocks electrical connections Output rating 75 ohm load switched at 9600 Baud This unit mounted C7400S enthalpy sensor includes solid state temperature and humidity sensors
