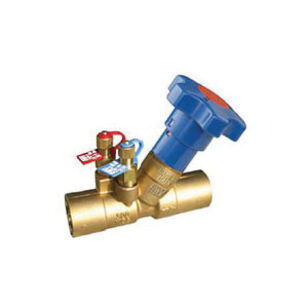

RWV® 9519-1/2 Balancing Valve, 1/2 in Nominal, Solder, 0.98 to 2.35 gpm, 300 psi, 15 to 260 deg F, DZR Brass Body
RWV® 9519-1/2 Balancing Valve, 1/2 in Nominal, Solder, 0.98 to 2.35 gpm, 300 psi, 15 to 260 deg F, DZR Brass Body
RWV® Balancing Valve, 9519 Series, 1/2 in Nominal, Solder Connection, Full Port, 300 psi, Pressure Class: Class 300, 0.98 to 2.35 gpm Flow Rate, Water Media, Manual Actuator, 3.74 in Inlet to Outlet Length, 4.06 in Top to Inlet Center, 1-Handle Handles, DZR Brass Body, Brass Seat, Brass Stem, PTFE Seal, DZR Brass Disc, Brass/DZR Brass Trim, ABS Handle, EPDM/PTFE/Steel Softgoods, Hand Wheel Operator, 2.22 Cv Flow Coefficient (Cv), 15 to 260 deg F, Material Standard: ASTM B124 UNS C37700, ASTM UNS C35330, Contains Lead, Blue, 3.74 in L x 4.06 in H, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$121.57 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRWV®
Actuator TypeManual
ApplicationFor hydronic controls applications
Body MaterialDZR Brass
ColorBlue
Connection TypeSolder
Dimensions3.74 " L x 4.06 " H
Disc MaterialDZR Brass
Domestic/ImportImport
Flow Coefficient (Cv)2.22
Flow Rate0.98 to 2.35
Handle MaterialABS
IndustryPlumbing
Inlet to Outlet Length3.74
Material StandardASTM B124 UNS C37700, ASTM UNS C35330
MediaWater
Nominal Size1/2
Number of Handles1-Handle
Operator TypeHand Wheel
Port TypeFull
Pressure ClassClass 300
Pressure Rating300
Seal MaterialPTFE
Seat MaterialBrass
Series9519 Series
Softgoods MaterialEPDM/PTFE/Steel
Stem MaterialBrass
Temperature Rating15 to 260
Top to Inlet Center4.06
Trim MaterialBrass/DZR Brass
Additional Information
Buy American Act Compliant
Features & Benefits
- DZR brass fixed orifice double regulating globe valve Venturi insert Positive shut-off with memory stop Design according to BS7350 Tolerance on nominal Cvs +/-3% (test according to BS7350) Multi-turn adjustment (four full turns minimum)
RWV® 9519-1/2 Balancing Valve, 1/2 in Nominal, Solder, 0.98 to 2.35 gpm, 300 psi, 15 to 260 deg F, DZR Brass Body
BrandRWV®
MFG #9519 1/2
Keller #856130
My Part ##
Last Ordered#
$121.57 / ea
