8 IN Ductile Iron Wye Pattern Strainer Flange SS Perforated Screen Tapped Retainer Cap Closure Plug
8 IN Ductile Iron Wye Pattern Strainer Flange SS Perforated Screen Tapped Retainer Cap Closure Plug
8 IN Ductile Iron Wye Pattern Strainer Flange SS Perforated Screen Tapped Retainer Cap Closure Plug
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,398.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Blowdown Outlet Connection TypeFlanged Joint
Blowdown Outlet Size1.5''
Body PatternWye
Bolt MaterialCarbon Steel
Class Rating250
Depth22"
Flange MaterialCast Iron
Gasket MaterialGraphite
Height15"
IndustryPlumbing
Inlet Connection Size8"
Inlet Connection Size Metric200 mm
Inlet Connection TypeFlanged Joint
MaterialDuctile Iron
Maximum Temperature Deg F406
Minimum Temperature Deg F-20
Outlet Connection Size8"
Outlet Connection TypeFlanged Joint
Plug MaterialCast Iron
Retainer Cover MaterialDuctile Iron
Retainer Cover TypeTapped with Closure Plug
Screen MaterialStainless Steel
Screen Size1/8''
Series77F-DI-250
StrainerYes
Strainer TypeWye
Weight282 lbs.
Width22"
Wog Rating500 psi
Shipping Dimensions (L x W x H)22" x 22" x 15"
Features & Benefits
- One piece cast body
- Wye pattern
- Class 250 flanged connections
- Iron blow down plug
Documents
Marketing Information

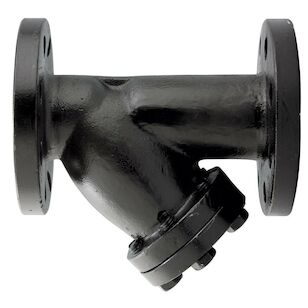

This ductile iron flanged wye pattern strainer, 8 inch Watts Model 77F-DI-250, has a one piece cast body, bolted cover flange with flat gasket seal, 304 stainless steel perforated screens and a drain blow off connection plug.
8 IN Ductile Iron Wye Pattern Strainer Flange SS Perforated Screen Tapped Retainer Cap Closure Plug
BrandWATTS®
MFG #0823045
Keller #857581
