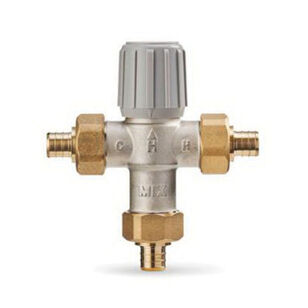

Honeywell Home AM1 Series AM101-UPEX-1LF/U Thermostatic Mixing Valve, 3/4 in Nominal, PEX, 0.5 gpm, 150 psi, Brass Body
Honeywell Home AM1 Series AM101-UPEX-1LF/U Thermostatic Mixing Valve, 3/4 in Nominal, PEX, 0.5 gpm, 150 psi, Brass Body
Honeywell Home Thermostatic Mixing Valve, AM1 Series, 3/4 in Nominal, PEX Connection, 150 psi, 0.5 gpm Flow Rate, Water Media, 5.1 in Inlet to Outlet Length, 3 in Top to Inlet Center, Brass Body, EPDM Seal, EPDM Packing, EPDM Softgoods, Finish: Nickle-Plated/PTFE-Coated, 70 to 145 deg F, 6 in H, Domestic/Import: Import, Additional Information: 3.9 Cv Flow Coefficient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$391.28Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional Information3.9 Cv Flow Coefficient
ApplicationFor domestic water, nursing homes, public facilities, automatic faucets, industrial and photo processing applications
Body MaterialBrass
Connection TypePEX
Dimensions6 " H
Domestic/ImportImport
FinishNickle-Plated/PTFE-Coated
Flow Rate0.5
IndustryHVAC
Inlet to Outlet Length5.1
MediaWater
Nominal Size3/4
Packing MaterialEPDM
Pressure Rating150
Seal MaterialEPDM
SeriesAM1 Series
Softgoods MaterialEPDM
Temperature Rating70 to 145
Top to Inlet Center3
Warranty1 Year Limited
Additional Information
ASSE Specified|CSA Certified|IAPMO Approved|NSF/ANSI Certified
Features & Benefits
- Features dual-purpose mixing or diverting values Offers constant water temperature under changing operating conditions Temperature is limited at any point and if cold-water supply is interrupted, flow reduction occurs in seconds Provides reliable performance at minimum flow of 0.5 gpm and proportional valve for simultaneous control of hot and cold Designed for easy maintenance and PTFE-coating prevents mineral build-up and extends life Lead-free products have products numbers end in LF Temperature gauge adapter in lead-free brass material with EPDM O-ring Low-lead content <0.25% by weighted average
Marketing Information
AM-1 Series adjusts, maintains and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
