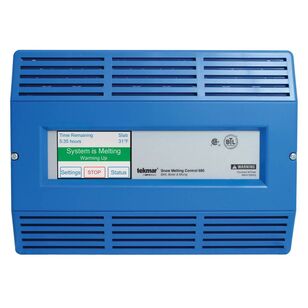

Snow Melting Control, BAS, Boiler and Mixing

Name: Snow Melting Control, BAS, Boiler and Mixing
Brand: Tekmar®
SKU: 858813
Price: 5477 USD
Availability: OutOfStock

MFG #680

Item #858813

Mfr. Part #680

UPC #

Snow Melting Control, BAS, Boiler and Mixing

Why Create an Account?

$5,477.00 / ea

Out of Stock

Attributes

BrandTekmar®

Ambient Temperature Range32 to 122 degree F

Boiler Mix Modulating Output0 - 10 VDC, 500 Ohm Minimum Load Impedance, 4 - 20 mA, 1 kOhm Maximum Load Impedance

Communications TypeBACnet IP, BACnet MSTP, Modbus MSTP

Control TypeMicroprocessor

Depth2.94"

Display3.25'' Color Touchscreen

Enclosure MaterialAbs,Polycarbonate,Steel

Floating Output230 VAC, 5 A

Flow Sensor4 - 20 mA, 20 VDC Power Supply by Control

Height8.06"

IncludesOutdoor Sensor 070, (3) Universal Sensor 082

Indoor OutdoorIndoor

IndustryHydronics

Injection Mixing Output230 VAC, 2.4 A

NEMA RatingNEMA 1

Power Rating43 VA Standby, 320 VA Maximum

Power Supply115 VAC plus /-10 percent , 60 Hz

Pressure Sensor0.5 - 4.5 VDC Ratiometric, 10 kOhm Minimum Load, 5 VDC Power Supply by Control

Prop 65 WarningYes

Relative Humidity<90 percent Non-Condensing

RelayBoiler Pump Relay: 230 VAC, 5 A, 1/3 hp, Boiler Stage Relay: 230 VAC, 5 A, Primary - System Pump Relay: 230 VAC, 10 A, 1/2 hp

SafetylistCSA C US, Meets Class B: ICES and FCC Part 15, BTL Listed

SensorNTC Thermistor, 10 kOhm at 77 degree F (25 degree C plus /- 0.2 degree C) Beta = 3892

Width11.13"
