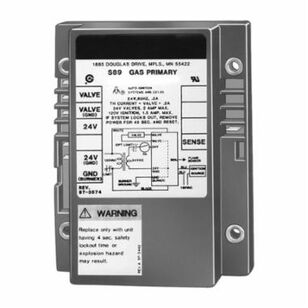

Honeywell Home S89F Series S89F1098 Direct Spark Ignition Control, 12 in L Lead, 24/120 V, 3/16 in, Quick-Connect
Honeywell Home S89F Series S89F1098 Direct Spark Ignition Control, 12 in L Lead, 24/120 V, 3/16 in, Quick-Connect
Honeywell Home Direct Spark Ignition Control, S89F Series, 12 in Lead Length, 24/120 V, 2 A, 3/16 in Connection, Quick-Connect Connection, Liquid Propane, Natural Gas, Pre Purge Time: 30 to 38 s, 4 s Lockout, 4.06 in Width, 5-1/4 in Height, For Use With: Gas Fired Atmospheric and Power Burners of Residential Furnaces and Heating Appliances, Additional Information: 2-Rod, 50/60 Hz Frequency Rating, - 40 to 175 deg F Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$846.15Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional Information2-Rod, 50/60 Hz Frequency Rating, - 40 to 175 deg F Temperature Rating
Amperage Rating2
Connection Size3/16
Connection TypeQuick-Connect
Depth1-15/16
Gas TypeLiquid Propane, Natural Gas
Height5-1/4
IndustryHVAC
Lead Length12
Lockout Time4
Pre Purge Time30 to 38
SeriesS89F Series
Suitable For Use WithGas Fired Atmospheric and Power Burners of Residential Furnaces and Heating Appliances
Voltage Rating24/120
Warranty12 Month
Width4.06
Additional Information
CSA 158158-1047805|Guide No. MCCZ2|UL Listed
Features & Benefits
- S89F has 38 sec maximum delay for safe start check plus valve on delay before ignition 100% shut-off for use with all heating gases Separate electrodes for spark ignition and flame sensing Uses resideo or any other 2A or less dual valve combination gas control designed for direct spark ignition applications Locks out system after trial for ignition if main burner fails to ignite Flame rectification principle used to monitor flame, false flame signals resulting from short to ground results in safety shutdown After safety shutdown, S89E and F can be reset from the thermostat
Documents
Marketing Information
The S89F direct spark ignition control modules control the ignition sequence and gas control operation in direct spark systems used primarily on gas fired atmospheric and power burners in residential furnaces and heating appliances.
