cULus Listed

• Tested for PVC, CPVC, ABS and PVC/ABS Foam Core, FRPP, PP, PVDF pipe Easy installation without modifications, steel bolts or fasteners, fasten with fiberglass tape, pop rivets or hose clamps around pipe Economical and saves on labor cost No measurement of material required and easily wraps around pipes Eliminates need for collars or wrap strips Flexible, can be retrofitted, easily removed and replaced and is manufactured from a durable galvanized steel outer shell lined with a highly intumescent material

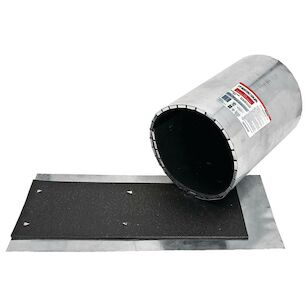

Metacaulk® Intumescent Sleeve is a firestop seal for PVC, cc-PVC, CPVC, FRPP, PP, ABS and PVDF pipe and rigid, non-metallic conduit installations. Easily installed without modifications, steel bolts or fasteners, the Intumescent Sleeve is an ideal approach for fire stopping combustible pipes penetrating the uneven contours of a concrete fluted deck assembly. It eliminates the need for collars or wrap strips and is great for use on pipes that penetrate walls at less than a 90 deg angle. It also eliminates the need to firestop on both sides of a penetration. The Intumescent Sleeve easily wraps around pipes and is manufactured from a durable galvanized steel outer shell that is lined with a highly intumescent material. The Intumescent Sleeve is fastened with either fiberglass tape, pop rivets or hose clamps around the pipe. When used with Metacaulk®® 1000 or 150 sealant, it produces an immediate smoke seal.
