LSP OBFS-8040-LL 1/2 X 1/4 LF BX
LSP OBFS-8040-LL 1/2 X 1/4 LF BX

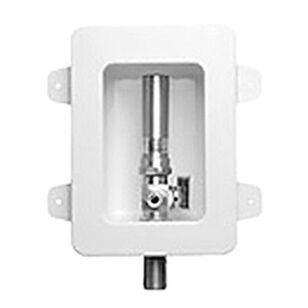

LSP™ FireStop™ Ice Maker Box, 1/2 x 1/4 in Connection, Uponor PEX x Compression Connection, Quarter-Turn Ball Valve, 3-7/8 in Box Width, 2-5/8 in Box Depth, 5-11/16 in Box Height, PVC Box, White Box, 5-1/4 in Faceplate Width, 7-5/16 in Faceplate Height, 1-1/4 in Faceplate Thickness, PVC Faceplate, White Faceplate
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$115.64 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLSP™
Box ColorWhite
Box Depth2-5/8
Box Height5-11/16
Box MaterialPVC
Box Width3-7/8
Connection Size1/2 x 1/4
Connection TypeUponor PEX x Compression
Faceplate ColorWhite
Faceplate Height7-5/16
Faceplate MaterialPVC
Faceplate Thickness1-1/4
Faceplate Width5-1/4
IndustryPlumbing
Valve TypeQuarter-Turn Ball
Additional Information
NSF/ANSI 61, N-6614|ASME A112.18.1|CSA B125.1 4577|IAPMO Approved|UPC Certified
Features & Benefits
- Rounded corners and compact size 1/4 in THK intumescent pad to seal the wall penetration for fire protection Deep faceplate accepts up to two-sheets of 5/8 in drywall Super durable box constructed of fire-resistant PVC Mounts on side of stud and can be installed upside down, vertically or horizontally Valves with hammer arresters do not need an access panel and can be installed in any direction Lead-free EZ-turn quarter ball valve includes long-lasting O-ring and PTFE seats and durable brass resists cracking/corrosion and allows for fingertip control of water flow 1 and 2 hr fire-rated
Documents
Marketing Information
The fire-rated ice maker box is similar in design to the mini ice maker, with a modern look and compact profile, but is constructed from fire-resistant PVC, with a factory-mounted intumescent pad. FireStop™ boxes are Warnock Hersey certified to ASTM E814 and CAN/ULC S115 1 and 2 hr listings. Suitable for use on wood or metal studs and with all pipe-types.
LSP OBFS-8040-LL 1/2 X 1/4 LF BX
BrandLSP™
MFG #OBFS-8040-LL
Keller #860714
My Part ##
Last Ordered#
$115.64 / ea
