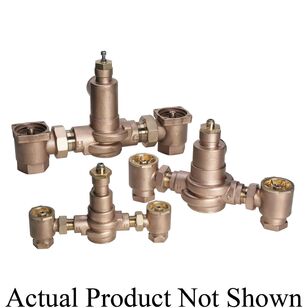

POWERS™ HydroGuard® XP LFSH1430 Series LFMM431 3 Master Tempering Valve, 3/4 in Nominal, NPT, 42 gpm, 125 psi
POWERS™ HydroGuard® XP LFSH1430 Series LFMM431 3 Master Tempering Valve, 3/4 in Nominal, NPT, 42 gpm, 125 psi
POWERS™ Master Tempering Valve, LFSH1430 Series, 3/4 in Nominal, NPT Connection, 125 psi, 42 gpm Flow Rate, Hot/Cold Water Media, 11.625 in Inlet to Outlet Length, 3.5 in Top to Inlet Center, Brass Body, Finish: Rough Bronze, 5 to 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,206.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPOWERS™
Body MaterialBrass
Connection TypeNPT
FinishRough Bronze
Flow Rate42
IndustryPlumbing
Inlet to Outlet Length11-5/8
MediaHot/Cold Water
Nominal Size3/4
Pressure Rating125
Prop 65 WarningYes
SeriesLFSH1430 Series
Temperature Rating5 to 200
Top to Inlet Center3-1/2
Additional Information
ASSE 1017|CSA B125|FM Approved|NSF Approved|UL Listed|ULC Listed|USC Listed|WQA Standard|BAA Compliant
Features & Benefits
- Vandal-resistant locking mechanism secures temperature setting Temper water as high as 208 gpm and as low as 3 gpm Virtual shut-off if supply pressure fails Dirt and lime-resistant poppet and seat design
Documents
Marketing Information
Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are Listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single seat design for virtual shut down in the event of cold water failure, triple duty check stops with screens and a 5 deg F (3 deg C) approach temperature for low temperature hot water supply. Valves are available in rough lead free bronze and chrome plated finish.
