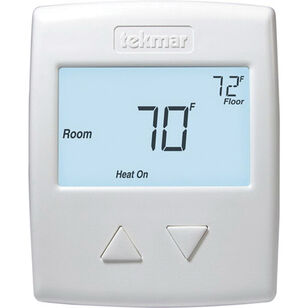

Tekmar® 532 Thermostat, 24 VAC, 1 Heat
Tekmar® 532 Thermostat, 24 VAC, 1 Heat
Tekmar® Thermostat, 24 VAC, 50/60 Hz Frequency, 1 Heat Stages, Relay Switch, 10 kilo-ohm at 77 deg F NTC Thermistor Sensing Element, 32 to 122 deg F Ambient, Less Than or Equal to 90% RH Non-Condensing Humidity, Hardwired Power Source, Vertical Mounting, Dimensions: 3-11/16 in H x 3 in W x 15/16 in D, PVC/Plastic, White
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$296.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandTekmar®
ApplicationFor 1-stage hydronic heating systems
ColorWhite
Dimensions3-11/16 " H x 3 " W x 15/16 " D
Frequency Rating50/60
Humidity RatingLess Than or Equal to 90% RH Non-Condensing
MaterialPVC/Plastic
Mounting TypeVertical
Power SourceHardwired
Sensing Element10 km-ohm at 77 deg F NTC Thermistor
Stages1 Heat
Switch TypeRelay
Temperature Rating32 to 122 deg F Ambient
Voltage Rating24
Warranty3 Year Limited
Additional Information
Meets Class B: ICES and FCC Part 15
Features & Benefits
- Simple up and down buttons and a display with large type make this thermostat easy to read and use It has 2-auxiliary sensor inputs that can be assigned to measure room, floor or outdoor temperature An optional floor sensor protects the floor from overheating and enhance comfort The 532 can be wired using 2 or 4-wires to connect to TekmarNet zoning controls or can be installed as a stand-alone thermostat using 3-wires Air group member, away scene, backlight Network schedule member, optimum start Radiant floor heating, zone synchronization TekmarNet communication compatible Micro-processor control 1.8 VA standby, class 2 at 24 V 2 A at 24 V, class 2 circuits relay Indoor use only ambient conditions NEMA Type 1 enclosure
