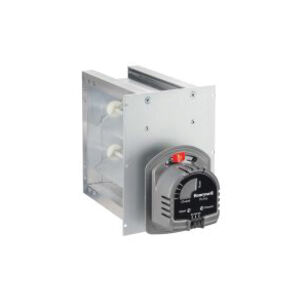

resideo ZD10X10TZ/U Zone Control Damper, 10 in W, Square, 24 V, 71 in-oz
resideo ZD10X10TZ/U Zone Control Damper, 10 in W, Square, 24 V, 71 in-oz
resideo Zone Control Damper, ZD Series, 24 V, 60 Hz, VA Rating: 8 VA, Parallel Blade, Push Terminal Electrical Connection, 30 s, 10 s Timing, 71 in-oz Torque, 0.0329 in-WC Pressure Drop, Aluminum, Side Mounting, Power Closed/Spring Open Motor, 4-41/64 in H x 3-61/64 in W x 4-31/32 in D Motor, Square Shape, 1 in-WC, 40 to 140 deg F, 10 in Length, 10 in Width, Domestic/Import: Import, Additional Information: For Use With: Honeywell® Zoning Systems
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$529.99 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional InformationFor Use With: Honeywell Zoning Systems
Amperage Rating0.32 A
Blade TypeParallel
Domestic/ImportImport
Electrical ConnectionPush Terminal
Frequency Rating60
Height4-31/32"
Length10
MaterialAluminum
Motor Dimensions4-41/64 " H x 3-61/64 " W x 4-31/32 " D
Motor TypePower Closed/Spring Open
Mounting TypeSide
Pressure Drop0.0329
Pressure Rating1
SeriesZD Series
ShapeSquare
Temperature Rating40 to 140
Timing Range30 s, 10 s
Torque Rating71
VA Rating8
Voltage Rating24
Width10
Additional Information
For Use With: Honeywell® Zoning Systems
Features & Benefits
- Mechanical visual position indicator for damper status Solid construction using extruded aluminum frame and blades Parallel blade design for low leakage performance Simple, easy-to-wire, two-wire installation Reliable, strong, 24-volt spring-return motor Fail-safe, normally open operation Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is an 8 in. x 10 in. damper that has the motor on the 10 in. side Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct)
Marketing Information
The ZD is a power close and spring open damper. It has a 24-volt motor used to control circulating air in HVAC systems and used when a normally-open damper is required. The ZD is typically used with the TrueZONE and other electronic zoning systems.
