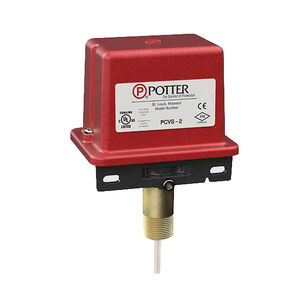

POTTER® PCVS Series 1010203 Control Valve Supervisory Switch, -40 to 140 deg F, MNPT Fitting, 1/2 in Fitting Connection
POTTER® PCVS Series 1010203 Control Valve Supervisory Switch, -40 to 140 deg F, MNPT Fitting, 1/2 in Fitting Connection
POTTER® Control Valve Supervisory Switch, Series: PCVS, -40 to 140 deg F, MNPT Fitting, 1/2 in Fitting Connection, Specifications: NEMA 4X, 6P, SPDT 10 A at 125/250 VAC, 2 A at 30 VDC
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$241.45 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPOTTER®
Fitting Connection1/2
Fitting TypeMNPT
IndustryFire Protection
SeriesPCVS
SpecificationsNEMA 4X, 6P, SPDT 10 A at 125/250 VAC, 2 A at 30 VDC
Temperature Rating-40 to 140
Additional Information
UL Listed|cULus Listed|FM Approved|MEA Approved|CE Certified|RoHS Compliant
Features & Benefits
- Visual switch indicators Two conduit entrances Adjustable length trip rod Accommodates up to 12 AWG wire Switch detects tampering and valve closure Two SPDT contacts
Documents
Marketing Information
The model PCVS is a weather-proof and tamper-resistant switch for monitoring the open position of fire sprinkler control valves of the wall and yard post indicator and butterfly types. Two SPDT (Form C) contacts are provided which will operate when the valve position is altered from an open state. The unit mounts in a 1/2 in NPT tapped hole in the post indicator or butterfly valve housing. The device is engaged by the indicating assembly of the post indicator or the operating mechanism of the butterfly valve, actuating switches when the valve is fully open. The unit should be installed where it is accessible for service. The cover is held in place by two tamper-resistant screws that require a special tool to remove. The tool is furnished with each device.
POTTER® PCVS Series 1010203 Control Valve Supervisory Switch, -40 to 140 deg F, MNPT Fitting, 1/2 in Fitting Connection
BrandPOTTER®
MFG #1010203
Keller #863596
My Part ##
Last Ordered#
$241.45 / ea
