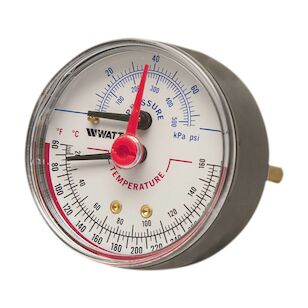

1/2 IN Lead Free Combination Pressure And Temperature Gauge Center Back-Entry 3 IN Dial 0 to 200 psi
1/2 IN Lead Free Combination Pressure And Temperature Gauge Center Back-Entry 3 IN Dial 0 to 200 psi
1/2 IN Lead Free Combination Pressure And Temperature Gauge Center Back-Entry 3 IN Dial 0 to 200 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$253.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Case MaterialSteel
Depth4"
Dial Size3''
Entry StyleBack
FinishBlack Enamel
Height4"
IndustryPlumbing
Inlet Connection Size1/2"
Inlet Connection TypeMale Threaded
Maximum Operating Temperature Deg F320
Minimum Temperature Deg F60
Pressure Scale0 to 200 psi
Prop 65 WarningYes
Sensing ElementYes
SeriesLFDPTG-3
Stem Shaft MaterialLead Free Brass
Temperature Range60 to 320 deg F
Vr Retaining ValveYes
Weight0.5 lbs.
Width5"
Shipping Dimensions (L x W x H)4.6" x 3.5" x 3.6"
Features & Benefits
- ABS polymer case
- Kostil polymer window
- Copper alloy Bourdon sensing element
- 1/2 IN (15 MM) NPT connection
Documents
Marketing Information
This 1/2 inch lead free combination pressure and temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a center, back-entry, black enamel steel case, Kostil Polymer window, 1/2 inch NPT connection, copper alloy Bourdon tube pressure element, and bimetal spiral spring. Accuracy is ASME, Type B. This gauge features a 3 inch dial with pressure rating scale from 0 to 200 psi and temperature range 60 to 320 degrees F.
1/2 IN Lead Free Combination Pressure And Temperature Gauge Center Back-Entry 3 IN Dial 0 to 200 psi
BrandWATTS®
MFG #0121662
Keller #864540
My Part ##
Last Ordered#
$253.00Â /Â ea
