SIOUX 833-23DSR DRAIN FINISH LINE 3 NH DI 6SS R&S R
SIOUX 833-23DSR DRAIN FINISH LINE 3 NH DI 6SS R&S R

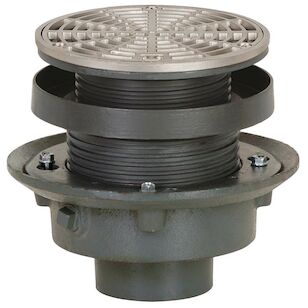

Sioux Chief Adjustable Above-Grade Flashing Drain, 833 Series, 3 in Nominal, No-Hub Connection, 6-1/2 in Dia Grid, Stainless Steel Grid, 6-1/2 in Dia x 5 to 7 in H, Domestic/Import: Import, Additional Information: Round Shape, 13.4 sq-in Strainer Free Area
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$860.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional InformationRound Shape, 13.4 sq-" Strainer Free Area
Connection TypeNo-Hub
Dimensions6-1/2 " Dia x 5 to 7 " H
Domestic/ImportImport
Grid MaterialStainless Steel
Grid Size6-1/2 " Dia
Nominal Size3
Series833 Series
Additional Information
ASME A112.6.3
Features & Benefits
- Adjustable AFTER the pour Ductile iron strainers for heavy-duty applications Patent #7,735,512 Cast iron base adapter with ductile iron clamping collar, coring sleeve, head adapter and poly coring plug Nickel bronze and stainless steel strainers for pedestrian traffic
Documents
Marketing Information
Sioux Chief 833 series FinishLine adjustable above-grade flashing drain shall be used where necessary in drainage systems. Flashing drain shall allow adjustment of 1-1/4" before the concrete pour, and 1-1/4" after the concrete pour. Flashing drain shall have an invertible flashing collar with openings to allow secondary drainage and a cast iron base adapter. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2" FIP for optional connection. Designed in accordance with ASME A112.6.3.
SIOUX 833-23DSR DRAIN FINISH LINE 3 NH DI 6SS R&S R
BrandSioux Chief
MFG #833-23DSR
Keller #865621
