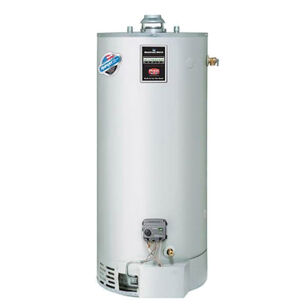

Bradford White® Eco-Magnum Series ULG275H763N Light-Duty Gas Water Heater, 75 gal, 76000 Btu/hr, 22.3 kW, Natural Gas
Bradford White® Eco-Magnum Series ULG275H763N Light-Duty Gas Water Heater, 75 gal, 76000 Btu/hr, 22.3 kW, Natural Gas
Bradford White® Light-Duty Gas Water Heater, Eco-Magnum Series, 75 gal Capacity, 76000 Btu/hr, 22.3 kW, 135 gal First Hour Delivery, 0.59 Energy Factor, 74 gph Recovery Rate, 4 in Vent, NPT Connection, 150 psi, Recovery Efficiency: 79 %, Floor Mounting, Natural Gas Fuel, Piezo Ignition, Contains Lead, 180 deg F, 26 in Dia x 64-3/4 in H x 29-9/16 in D, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,995.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBradford White®
BTU Rating76000
Capacity75
Connection TypeNPT
Dimensions26 " Dia x 64-3/4 " H x 29-9/16 " D
Domestic/ImportDomestic
Energy Factor0.59
First Hour Delivery135
Fuel TypeNatural Gas
Ignition TypePiezo
Mounting TypeFloor
Power Rating22.3
Pressure Rating150
Recovery Efficiency79
Recovery Rate74
SeriesEco-Magnum Series
Temperature Rating180
Vent Size4"
Shipping Dimensions (L x W x H)31.63" x 27.13" x 62.5"
Additional Information
ANSI Z21.10.3-2019|ASHRAE 90.1b|CEC Compliant|CSA 4.3-2019
Features & Benefits
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels Exclusive multi-color LED light indicates operation status/service required Ensures proper air to gas ratio for reduction of NOx generated by the combustion process No regular cleaning of air inlet openings or flame arrestor is required under normal conditions (ULG250H553N only) Offers a view into the combustion chamber to observe the operation of the pilot and burner Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining With an adjustable temperature up to 180 deg F (82 deg C) 3/4 in (19 mm) NPT tapping's allow an easy connection for space heating applications (potable water only) Non-CFC foam covers the sides and top of the tank, reducing heat loss This results in less energy consumption, improved efficiencies and jacket rigidity Rugged and durable base allows easy transport and positioning, while providing corrosion-resistant contact with floor 3/4 in (19 mm) NPT factory installed true dielectric fittings extend water heater life and simplify water line connections Provides added protection against corrosion for long-term, trouble-free service
Marketing Information
Intelligent gas control with proven millivolt powered technology and built-in piezo igniter. A standard, off-the-shelf thermopile converts heat energy from the pilot flame into electrical energy to operate the gas valve and microprocessor. No need for external electricity.
Bradford White® Eco-Magnum Series ULG275H763N Light-Duty Gas Water Heater, 75 gal, 76000 Btu/hr, 22.3 kW, Natural Gas
BrandBradford White®
MFG #ULG275H763N
Keller #866035
My Part ##
Last Ordered#
$5,995.00 / ea
