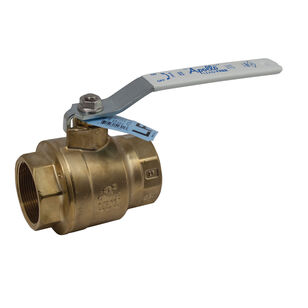

Apollo® 77FLF-100 Series 77FLF14901 Ball Valve, 2-1/2 in, FNPT, Brass, 400 psi
Apollo® 77FLF-100 Series 77FLF14901 Ball Valve, 2-1/2 in, FNPT, Brass, 400 psi
Apollo® Ball Valve, 77FLF-100 Series, 2-1/2 in Nominal, FNPT Connection, Full Port, Standard, 400 psi, Water Media, 5.98 in Inlet to Outlet Length, 4.14 in Top to Inlet Center, 2-1/2 in Opening, Lever Handle Operator, Material Standard: UNS C27451, Brass Body, RPTFE Seat, Stainless Steel Stem, RPTFE Packing, Polyvinyl/Steel Handle, Stainless Steel Ball, Lead-Free, Bronze/Yellow, 0 to 400 deg F, 5 x 2 x 3 in, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$676.02 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Ball MaterialStainless Steel
Body MaterialBrass
ColorBronze/Yellow
ConfigurationStandard
Connection TypeFNPT
Dimensions5 x 2 x 3
Domestic/ImportDomestic
Handle MaterialPolyvinyl/Steel
IndustryPlumbing
Inlet to Outlet Length5.98
Lead-FreeYes
Material StandardUNS C27451
MediaWater
Nominal Size2-1/2
Opening Size2-1/2
Operator TypeLever Handle
Packing MaterialRPTFE
Port TypeFull
Pressure Rating400
Seat MaterialRPTFE
Series77FLF-100 Series
Stem MaterialStainless Steel
Temperature Rating0 to 400
Top to Inlet Center4.14
Warranty5 Year
Additional Information
ARRA Compliant|MSS SP-110|IAPMO/ANSI Z1157/372|NSF 61|FM Approved|CSA Listed|UL Listed|cUPC Certified
Features & Benefits
- Heavy pattern forged design Adjustable stem packing Blowout-proof stem design Dezincification-resistant materials 100% factory tested Silicone-free assembly
Marketing Information
The Apollo® Valves 77FLF-100 Series is a lead-free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, two-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly made in the USA.
Apollo® 77FLF-100 Series 77FLF14901 Ball Valve, 2-1/2 in, FNPT, Brass, 400 psi
BrandApollo®
MFG #77FLF14901
Keller #867580
My Part ##
Last Ordered#
$676.02 / ea
