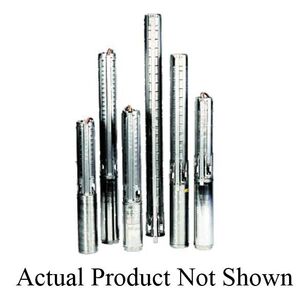

Grundfos 9010009 Submersible Pump End, 1/2 hp, 8.81 gpm, 2800 ft Max Feet of Head, Stainless Steel
Grundfos 9010009 Submersible Pump End, 1/2 hp, 8.81 gpm, 2800 ft Max Feet of Head, Stainless Steel
Grundfos Submersible Pump End, Model: 10S05-9, 60 Hz Frequency, HP Rating: 1/2 hp, 3450 rpm Speed, 8.81 gpm Flow Rate, 1-1/4 in NPT Discharge, 2800 ft Maximum Feet of Head, 9 Stage, 140 deg F, Stainless Steel Impeller, Stainless Steel, Dimensions: 3.98 in Dia x 13.5 in H, Additional Information: Horizontal, Vertical Orientation, 173.9 ft Rated Head
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$749.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional InformationHorizontal, Vertical Orientation, 173.9 ' Rated Head
Dimensions3.98 " Dia x 13.5 " H
Discharge Size1-1/4 " NPT
Flow Rate8.81
Frequency Rating60
HP Rating1/2
Impeller MaterialStainless Steel
IndustryPlumbing
MaterialStainless Steel
Maximum Feet of Head2800
Model10S05-9
Number of Stages9
Speed Rating3450
Temperature Rating140
Additional Information
AISI 304 Specified|EN 1.4301 Specified
Features & Benefits
- Octagonal discharge design ensures better engagement with a pipe wrench for easier and safer attachment to the drop pipe Screw-mounted cable guard attachment to ensure a secure fit Built-in check valve to minimize the risk of water hammering Corrosion-resistant, robust stainless steel construction - 304, 316, 904L Wear resistance via less abrasive wear octagonal bearings and sand flush channels that remove particles with the pumped water sand resistance is further increased by using the bearing offering longer life in sandy environments Optimized hydraulics ensure increased performance and higher efficiency FKM and PTFE parts make the SP suitable for aggressive water conditions Stop ring protects the pump in case of up thrust
Marketing Information
Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-aggressive liquids without solid particles or fibers. Horizontal and vertical installation. The pump is fitted with a built-in non-return valve.
