3 IN Flow Measurement Valve Flange
3 IN Flow Measurement Valve Flange
3 IN Flow Measurement Valve Flange
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,016.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Depth14.38"
Height11.38"
IndustryPlumbing
Inlet Connection Size3"
Inlet Connection Size Metric80 mm
Inlet Connection TypeFlanged Joint
Inlet Thread TypePTF
MaterialSemi Steel
Maximum Temperature Deg F250
Maximum Working Pressure Psi175
Outlet Connection Size3"
Outlet Connection Thread TypePTF
Outlet Connection TypeFlanged Joint
Prop 65 WarningYes
SeriesCSM-81-F
Weight41.9 lbs.
Width13.63"
Shipping Dimensions (L x W x H)14.375" x 13.63" x 11.38"
Features & Benefits
- Accurate flow measurement
- Flanged end connections
- Positive shutoff
- Low torque
Documents
Marketing Information

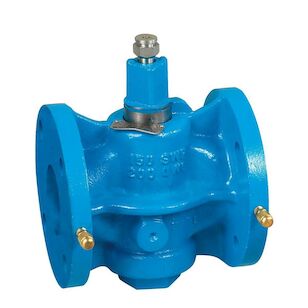

This 3 inch flow measurement valve monitors system flow in medium to high flow rate HVAC units providing a highly accurate flow measurement. It consists of semi-steel body construction with a low-torque cylindrical plug design, flanged end connections, checked metering ports with drip caps, position indicator plate, positive shutoff, and two brass pressure taps. It is ideal in hot/chilled water units such as fan coil units, water source heat pumps, reheat coils, panel coils, branch lines, and pumps.
3 IN Flow Measurement Valve Flange
BrandWATTS®
MFG #0036541
Keller #870489
