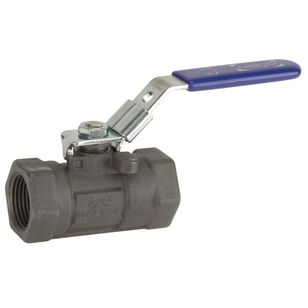

NIBCO T560CSR66FSLL-1IN CS BALL VLV
NIBCO T560CSR66FSLL-1IN CS BALL VLV
NIBCO® 1-Piece Ball Valve, T-560-CS-R-66-FS-LL Series, 1 in Nominal, FIPT Connection, Reduced Port, 2000 psi, 3.23 in Inlet to Outlet Length, 2.56 in Top to Inlet Center, 0.62 in Opening, Quarter-Turn Locking Lever Handle Operator, 22 Cv Flow Coefficient (Cv), Material Standard: ASTM A216/A276/A283, Carbon Steel Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, Stainless Steel Trim, Graphoil Packing, Carbon Steel Handle, Stainless Steel Ball, PTFE Softgoods, 400 deg F, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$213.80 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialStainless Steel
Body MaterialCarbon Steel
Connection TypeFIPT
Domestic/ImportImport
Flow Coefficient (Cv)22
Handle MaterialCarbon Steel
IndustryPlumbing
Inlet to Outlet Length3.23
Material StandardASTM A216/A276/A283
Nominal Size1
Opening Size0.62
Operator TypeQuarter-Turn Locking Lever Handle
Packing MaterialGraphoil
Port TypeReduced
Pressure Rating2000
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesT-560-CS-R-66-FS-LL Series
Softgoods MaterialPTFE
Stem Material316 Stainless Steel
Temperature Rating400
Top to Inlet Center2.56
Trim MaterialStainless Steel
Warranty5 Year Limited
Shipping Dimensions (L x W x H)4.25"
Additional Information
API 607 4th Edition Fire Safe|MSS SP 110
Features & Benefits
- Valve pressure rating 2000 psi non-shock cold working pressure Blowout-proof stem Vented ball
Marketing Information
The NIBCO® carbon steel ball valve provides ease of operation with quarter-turn (90 deg) open to close and bubble-tight shut-off at 2000 psi. The one-piece design eliminates leak paths and features threaded ends for easy installation. The one-piece valve is recommended for petrochemical, utility service applications. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO® Inc. 5 years 125% limited warranty.
NIBCO T560CSR66FSLL-1IN CS BALL VLV
BrandNIBCO®
MFG #NL944GAP
Keller #871071
My Part ##
Last Ordered#
$213.80 / ea
