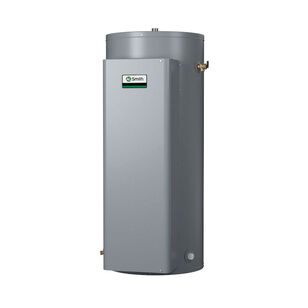

AO Smith® Gold™ Series DRE-80 Electric Water Heater, 80 gal, 92151 Btu/hr, 27 kW, 3 ph, 480 V
AO Smith® Gold™ Series DRE-80 Electric Water Heater, 80 gal, 92151 Btu/hr, 27 kW, 3 ph, 480 V
AO Smith® Electric Water Heater, Gold™ Series, 80 gal Capacity, 92151 Btu/hr, 27 kW, 79 gph Recovery Rate, 98 % Efficiency, 6 Elements, 4500 W Element Wattage, 32.5 A, 480 V, 3 ph Phase, NPT Connection, 1-1/4 in Connection, 150 psi, Surface Mounting, Surface-Mounted Thermostat, Finish: Baked Enamel, 120 to 181 deg F, 31 in Dia x 60-1/4 in H, Incoloy® Element
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandAO Smith®
Amperage Rating32.5
BTU Rating92151
Capacity80
Connection Size1-1/4"
Connection TypeNPT
Dimensions31 " Dia x 60-1/4 " H
Efficiency98
Element MaterialIncoloy
Element Wattage4500
FinishBaked Enamel
IndustryPlumbing
Mounting TypeSurface
Number of Elements6
Phase3
Power Rating27
Pressure Rating150
Recovery Rate79
SeriesGold Series
Temperature Rating120 to 181
Thermostat TypeSurface-Mounted
Voltage Rating480
Additional Information
ASHRAE Compliant|CSA Certified|IES 90.1-2012|UL Listed
Features & Benefits
- Designed for use as a recovery water heater Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling Fusing protects all elements, thermostats and internal wiring circuits against excess current flow Factory installed terminal block for ease of installation Temperature controls located behind hinged control compartment door for quick, easy access Dual commercial-grade anode rods for maximum corrosion protection Simplified circuitry, color-coded for ease of service
Marketing Information
Gold™ Series commercial electric water heaters are designed for use as recovery water heaters. The Gold™ Series is available in three capacities 50, 80 and 119 gal storage tanks, with input choices ranging from 12.3 to 54 kW. A. O. Smith® offers the largest commercial product selection available, including the most specified commercial unit in the US. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10000 gal, with input range from 50000 Btu to the equivalent of 4000000 Btu. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.
