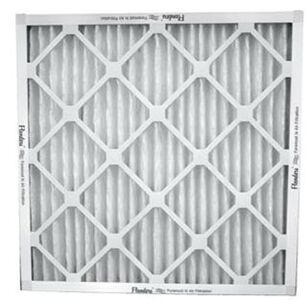

Flanders® Pre Pleat M13 90013.042424 V-Pleated Filter, 24 in W, 24 in H, 4 in D, 13 MERV
Flanders® Pre Pleat M13 90013.042424 V-Pleated Filter, 24 in W, 24 in H, 4 in D, 13 MERV
Flanders® V-Pleated Filter, 90013 Series, Non-Woven Synthetic Media, 24 in Width, 24 in Height, 4 in Depth, 13 MERV, 80 to 85 % Filter Efficiency, 22.6 sq-ft Media Area, 9 Pleats per Linear Feet, 300/500 fpm Rated Velocity, 0.13 in-WG at 300 fpm and 0.23 in-WG at 500 fpm Initial Resistance, 1 in-WG Final Resistance, 1200 cfm, 2000 cfm Air Flow Capacity, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$56.81 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandFlanders®
Air Flow Capacity1200 cfm, 2000 cfm
Depth4
Filter Efficiency80 to 85
Final Resistance1 "-WG
Height24
IndustryHVAC
Initial Resistance0.13 "-WG at 300 fpm and 0.23 "-WG at 500 fpm
Media Area22.6
Media MaterialNon-Woven Synthetic
MERV13
Pleats per Linear Feet9
Rated Velocity300/500
Series90013 Series
Temperature Rating180
Width24
Additional Information
ASHRAE 52.2-2007 Standard|Complies with the Air Filter Requirements of Credits 1.4 and 1.5 Under LEED IEQ Version 3
Features & Benefits
- 100% non-woven synthetic media manufactured from recyclable material Diamond shaped expanded metal media support Moisture-resistant clay-coated frame made with recyclable material frame Contributes to satisfying the following LEED® version 3 credits credit 1 energy and atmosphere, credit 1 materials and resources, credits 1.1 and 3.2 indoor environmental quality, credit 1 innovation
Documents
Marketing Information
Flanders has LED the world in filter media development and the application of high-efficiency filtration for over 60 years. Pre pleat M13 pleated panel filters can be an ideal choice to achieve the compliance requirements of LEED® V3 IEQ credits 1.5 and 1.5. The low initial resistance of the M13 can also contribute an overall strategy of reducing energy consumption. It's 1, 2 and 4 in depths makes MERV 8 3 13 upgrades as trouble-free as a direct replacement for most commercial and industrial applications.
Flanders® Pre Pleat M13 90013.042424 V-Pleated Filter, 24 in W, 24 in H, 4 in D, 13 MERV
BrandFlanders®
MFG #90013.042424
Keller #872894
My Part ##
Last Ordered#
$56.81 / ea
