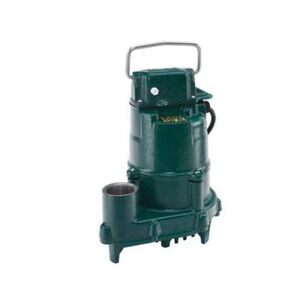

ZOELLER 152-0005 BN152 115V 1PH .4HP PB20FT CCSAUS
ZOELLER 152-0005 BN152 115V 1PH .4HP PB20FT CCSAUS
Zoeller® Effluent Pump, Model: 150, 115/230 VAC, 8.5 A, 0.56 kW Power, 60 Hz Frequency, HP Rating: 4/10 hp, 3450 rpm Speed, 77 gpm Flow Rate, 1 ph, 1-1/2 in Discharge, 20 ft Cord Length, Maximum Feet of Head: 44 ft, 130 deg F, Thermoplastic Impeller, Dimensions: 12.125 in H x 10.093 in W x 7.75 in D, Cast Iron/Neoprene/Stainless Steel, Powder-Coated Epoxy
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$540.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZoeller®
Amperage Rating8.5 A
ApplicationFor septic tank, low pressure pipe (LPP) and enhanced flow STEP systems
Cord Length20'
Dimensions12.125" H x 10.093" W x 7.75" D
Discharge Size1-1/2"
FinishPowder-Coated Epoxy
Flow Rate77 gpm
Frequency Rating60 Hz
HP Rating4/10 hp
Impeller MaterialThermoplastic
Includes1-1/2 x 2 in PVC Adapter
IndustryPlumbing
MaterialCast Iron/Neoprene/Stainless Steel
Maximum Feet of Head44'
Phase1 ph
Power Rating0.56 kW
Speed Rating3450 rpm
Temperature Rating130 deg F
Voltage Rating115/230 VAC
Warranty3 Year Limited
Features & Benefits
- Durable, cast iron construction
- Timed dosing panels
- Stainless steel lifting handle
- Assembled with stainless steel bolts
- Non-clogging, engineered thermoplastic, vortex impeller design
- Motor - 3450 rpm, oil filled, hermetically sealed and automatic reset thermal overload protected
- Carbon/ceramic seals
Marketing Information
This is our fastest growing line of effluent pumps. The 150 Series is truly a workhorse designed for reliability under extreme conditions in an effluent environment. 150 Series pump curves cover a wide range of applications. They are well-suited to applications with low pressure pipe (LPP) and enhanced flow STEP systems. Zoeller's cool run design and corrosion-resistant, powder-coated epoxy finish, in addition to the hermetically sealed, oil filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
ZOELLER 152-0005 BN152 115V 1PH .4HP PB20FT CCSAUS
BrandZoeller®
MFG #152-0005
Keller #872935
My Part ##
Last Ordered#
$540.00Â /Â ea
