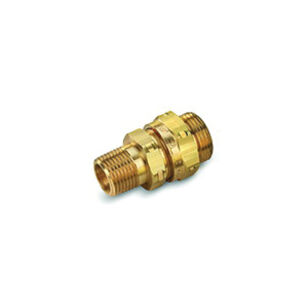

Gastite® FlashShield™ XR3TRM-8-NF-12 Termination Fitting, 1/2 in CSST x 1/2 in NPT, Brass
Gastite® FlashShield™ XR3TRM-8-NF-12 Termination Fitting, 1/2 in CSST x 1/2 in NPT, Brass
Gastite® FlashShield™ Termination Fitting, XR3 Series, Termination Fitting Fitting, 1/2 in Connection Size 1, Connection Type 1: CSST, 1/2 in Connection Size 2, Connection Type 2: NPT, CSST|NPT Connection, Brass, Material Construction: CA360 Brass, 25 psi, 1-1/4 in, 1-1/8 in Hex, -40 to 160 deg F, Additional Information: 35 ft-lb Torque
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$41.06 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTITEFLEX
Additional Information35 '-lb Torque
Connection Size 11/2
Connection Size 21/2
Connection TypeCSST|NPT
Connection Type 1CSST
Connection Type 2NPT
Fitting TypeTermination Fitting
Hex Size1-1/4 ", 1-1/8 "
IncludesAdapter, Nut and Bushing
MaterialBrass
Material ConstructionCA360 Brass
Pressure Rating25
SeriesXR3 Series
Temperature Rating-40 to 160
Additional Information
ANSI LC 1|CSA 2728525|IAPMO File No. C-3250 and Report No. 0239|ICC-ES PMG 1066/PMG 1155|ICC-ES PMG LC1024/LC1027
Features & Benefits
- Metal lock for enhanced continuity Tool-less flare design, no special tools are required Metal to metal seal, with no split rings, O-rings or gaskets Self-guiding assembly to ensure a perfectly even flare Exclusive, patented Jacket-Lock™ fitting eliminates exposed stainless steel beyond the nut All components are fully reusable Straight fittings connect the flexible gas tubing to gas supply, distribution manifolds or gas appliances Termination fittings create a fixed point "stub-out" on a wall or floor surface Without flange
Documents
Marketing Information
XR3 fittings are designed with a patented feature that contours the metal shield. This creates electrical continuity throughout the system. The XR3 fitting requires minimal torque for easy fitting installation. With no O-rings or gaskets, the reusable brass components provide a reliable metal to metal seat.
Gastite® FlashShield™ XR3TRM-8-NF-12 Termination Fitting, 1/2 in CSST x 1/2 in NPT, Brass
BrandTITEFLEX
MFG #XR3TRM-8-NF-12
Keller #873060
My Part ##
Last Ordered#
$41.06 / ea
