ANSI LC1|CSA Certified|IAPMO Approved|ICC Certified

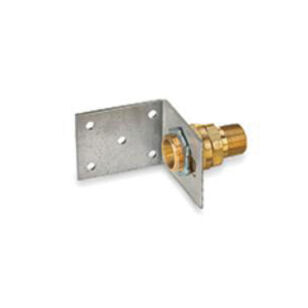

• Straight fittings connect the flexible gas tubing to gas supply, distribution manifolds or gas appliances Tool less flare fitting design Couplings allow for the splicing and additions to the flexible gas tubing Tee fittings create a branch line on tubing runs Termination fittings create a fixed point "stub-out" on a wall or floor surface Termination bracket fittings provide a secure attachment point for key-valves and as an alternate termination point Metal lock for enhanced continuity Tool less flare design, no special tools are required Metal-to-metal seal, with no split rings, O-ring or gaskets Self-guiding assembly to ensure a perfectly even flare Exclusive, patented Jacket-Lock™ fitting eliminates exposed stainless steel beyond the nut All components are fully reusable

XR3 (rev. 2) Series mechanical brass fittings are specifically designed for use with Gastite®, FlashShield® and FlashShield+™ flexible gas piping systems complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST". The self-flaring fitting produces a metal-to-metal seal and is reusable. The fittings have standard NPT threads and may be used in combination with all approved fuel gas piping materials with pipe thread as an interface. Jacket-Lock®, Metal Lock, Arc-Trap™ and multi-point seal features are incorporated into the fitting.
