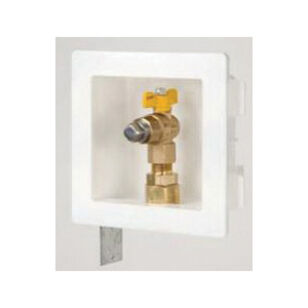

Gastite® XR3 Series XR3OUTLETBOX-8 Outlet Box, 1/2 in, NPT, Brass, 5-3/16 in H x 5-3/16 in W x 2-1/8 in D
Gastite® XR3 Series XR3OUTLETBOX-8 Outlet Box, 1/2 in, NPT, Brass, 5-3/16 in H x 5-3/16 in W x 2-1/8 in D
Gastite® Outlet Box, XR3 Series, 1/2 in, NPT Connection, Bracket Mounting, Brass, -40 to 160 deg F, 5-3/16 in H x 5-3/16 in W x 2-1/8 in D, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$107.25 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTITEFLEX
ApplicationFor flush mount fixed-point termination of appliances
Connection TypeNPT
Dimensions5-3/16 " H x 5-3/16 " W x 2-1/8 " D
Domestic/ImportImport
IncludesXR3 Male Termination Fitting, Valve Box, Valve, Finish Plate, Mounting Bracket, Jam Nut and Plug
IndustryHVAC
MaterialBrass
Mounting TypeBracket
SeriesXR3 Series
Size1/2
Temperature Rating-40 to 160
Shipping Dimensions (L x W x H)10.5" x 8.5" x 8"
Additional Information
CSA 2728525|IAPMO 3250, Report #0239|ICC-ES Report PMG-1155, PMG-1019
Features & Benefits
- Tool less flare fitting design Metal-to-metal seal Multi-point seal Shield to fitting Fully reusable fitting Approved for concealed use
Documents
Marketing Information
XR3 Series mechanical brass fittings are specifically designed for use with Gastite® and FlashShield™ flexible gas piping systems complying with ANSI LC 1 fuel gas piping systems Using CSST. The self-flaring fitting produces a metal-to-metal seal and is reusable. The fittings have standard NPT threads and may be used in combination with all approved fuel gas piping materials with pipe thread as an interface. The Jacket-Lock™ and shield-to-fitting features provide CSST protection.
Gastite® XR3 Series XR3OUTLETBOX-8 Outlet Box, 1/2 in, NPT, Brass, 5-3/16 in H x 5-3/16 in W x 2-1/8 in D
BrandTITEFLEX
MFG #XR3OUTLETBOX-8
Keller #873095
My Part ##
Last Ordered#
$107.25 / ea
