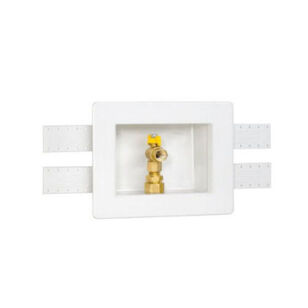

Gastite® XR3OUTLETBOX-FR11 Gas Outlet Box, 3/4 in, 8-1/4 in W Box, 3-1/2 in D Box, 7-1/8 in H Box
Gastite® XR3OUTLETBOX-FR11 Gas Outlet Box, 3/4 in, 8-1/4 in W Box, 3-1/2 in D Box, 7-1/8 in H Box
Gastite® Gas Outlet Box, 3/4 in Connection, 8-1/4 in Box Width, 3-1/2 in Box Depth, 7-1/8 in Box Height, 10-7/8 in Faceplate Width, 8-3/4 in Faceplate Height, Brass Valve, Additional Information: 25 psi Pressure Rating, 40 to 160 deg F Temperature Rating, ASTM E814 Material Standard
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$245.61 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTITEFLEX
Additional Information25 psi Pressure Rating, 40 to 160 deg F Temperature Rating, ASTM E814 Material Standard
Box Depth3-1/2
Box Height7-1/8
Box Width8-1/4
Connection Size3/4
Faceplate Height8-3/4
Faceplate Width10-7/8
IncludesXR3 Termination Fitting, Valve Box, Valve, Finish Plate, Mounting Bracket, Nut and Plug
IndustryHVAC
Valve MaterialBrass
Additional Information
ASTM E814|CAN/ULC S115|CSA 2728525|IAPMO 3250, Report #0239|ICC-ES Certified
Features & Benefits
- Designed to prevent the passage of fire through a wall assembly Tool less flare fitting design Metal-to-metal seal Multi-point seal Shield to fitting Fully reusable fitting Approved for concealed use
Documents
Marketing Information
XR3 Series mechanical brass fittings are specifically designed for use with Gastite® and FlashShield™ flexible gas piping systems complying with ANSI LC 1 in fuel gas piping systems using CSST. The self-flaring fitting produces a metal-to-metal seal and is reusable. The fittings have standard NPT threads and may be used in combination with all approved fuel gas piping materials with pipe thread as an interface. The Jacket-Lock™ and shield-to-fitting features provide CSST protection.
Gastite® XR3OUTLETBOX-FR11 Gas Outlet Box, 3/4 in, 8-1/4 in W Box, 3-1/2 in D Box, 7-1/8 in H Box
BrandTITEFLEX
MFG #XR3OUTLETBOX-FR11
Keller #873100
My Part ##
Last Ordered#
$245.61 / ea
