ANSI/UL 778|C22.2 File No. 108|CAN/CSA Certified

• Safe selection Simple installation Low energy consumption, all MAGNA1 pumps comply with the EuP requirements Nine light fields for indication of pump setting, 3-proportional-pressure curves, 3-constant-pressure curves and 3-fixed-speed curves are available Low noise level No maintenance and long life Multiple pump control modes including patented auto adapt Intelligent interface pump display No mechanical seal and no coupler Proportional pressure control Constant pressure control Constant curve/constant speed duty Wide temperature range where the liquid temperature and the ambient temperature are independent of each other

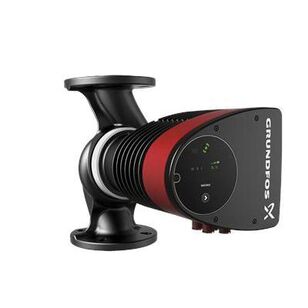

MAGNA1 circulator pump with easy selection of pump setting The pump is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only 2 gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. A pump with no maintenance requirements and extremely low life cycle cost. The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the setting of the pump duty point, thus reducing energy costs. The pumps are also suitable for domestic hot-water systems. To ensure correct operation, it is important that the sizing range of the system falls within the duty range of the pump.
