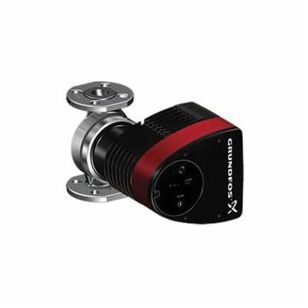

Grundfos MAGNA 1 Series MAGNA1 32-60 F N 98126821 Circulator Pump, 38 gpm, 8.71 to 107 W, 115-230 V, 0.28 to 1.01 A

Name: Grundfos MAGNA 1 Series MAGNA1 32-60 F N 98126821 Circulator Pump, 38 gpm, 8.71 to 107 W, 115-230 V, 0.28 to 1.01 A
Brand: Grundfos
SKU: 873914
Price: 2475 USD
Availability: OutOfStock

Grundfos

Grundfos MAGNA 1 Series MAGNA1 32-60 F N 98126821 Circulator Pump, 38 gpm, 8.71 to 107 W, 115-230 V, 0.28 to 1.01 A

MFG #98126821

Item #873914

Mfr. Part #98126821

UPC #5710629499837

Grundfos Circulator Pump, MAGNA 1 Series, Model: MAGNA1 32-60 F N, 38 gpm Flow Rate, 60 mm Inlet, 60 mm Outlet, 60 ft Maximum Head, 8.71 to 107 W, 115-230 V, 0.28 to 1.01 A, 60 Hz, 175 psi Maximum Pressure, 3516 rpm Motor Speed Rating, 1/6 hp, GF15/26/40/43 Connection, Flanged Connection, 1 ph Phase, 40 deg C Ambient, 110 deg C Liquid, Stainless Steel, 6.5 in L x 7.91 in W x 6.61 in H, Additional Information: Glass-Filled PES Impeller Material

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$2,475.00 / ea

Out of Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandGrundfos

Additional InformationGlass-Filled PES Impeller Material

Amperage Rating0.28 to 1.01

Connection SizeGF15/26/40/43

Connection TypeFlanged

Dimensions6.5 " L x 7.91 " W x 6.61 " H

Flow Rate38

Frequency Rating60

HP Rating1/6

Inlet Size60

MaterialStainless Steel

Maximum Head60

Maximum Pressure175

ModelMAGNA1 32-60 F N

Motor Speed Rating3516

Outlet Size60

Phase1

Power Rating8.71 to 107

SeriesMAGNA 1 Series

Temperature Rating40 deg C Ambient, 110 deg C Liquid

Voltage Rating115-230
