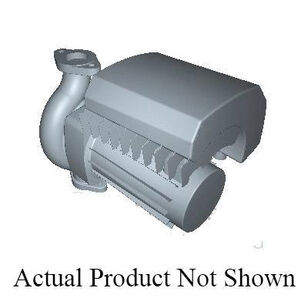

Bell & Gossett ecocirc® XL Series ecocirc XL B 65-130 104409LF Circulating Pump, 45 to 825 W, 230 V, 0.5 to 3.5 A
Bell & Gossett ecocirc® XL Series ecocirc XL B 65-130 104409LF Circulating Pump, 45 to 825 W, 230 V, 0.5 to 3.5 A
Bell & Gossett Circulating Pump, Series: ecocirc® XL, Model: ecocirc XL B 65-130, 45 to 825 W, 230 V, 0.5 to 3.5 A, 50/60 Hz, 175 psi Maximum, 1100 to 3550 rpm Motor Speed Rating, HP Rating: 1 hp, 1-1/2 in, NPT, 1, 14 to 230 deg F, IP44, Sleeve Bearing, Bronze, 11.5 in H x 14.84 in W x 9.53 in D, Additional Information: 11-1/2 in Port to Port, 2-Bolt Holes, 32 to 104 deg F Ambient Temperature, Class F Motor Insulation, EPDM Gasket/O-Ring
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,956.74 / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Additional Information11-1/2 " Port to Port, 2-Bolt Holes, 32 to 104 deg F Ambient Temperature, Class F Motor Insulation, EPDM Gasket/O-Ring
Amperage Rating0.5 to 3.5
Bearing TypeSleeve
Connection Size1-1/2
Connection TypeNPT
Dimensions11.5 " H x 14.84 " W x 9.53 " D
Enclosure TypeIP44
Frequency Rating50/60
HP Rating1
IndustryPlumbing
MaterialBronze
Maximum Pressure175
Modelecocirc XL B 65-130
Motor Speed Rating1100 to 3550
Phase1
Power Rating45 to 825
Seriesecocirc XL
Temperature Rating14 to 230
Voltage Rating230
Additional Information
CSA Certified|cULus C22.2 File No. 108|NSF/ANSI 372|UL 1004-1|UL 1004-7|UL 60730-1|UL 778
Marketing Information
The ecocirc® XL circulator is designed with a highly efficient electronically commutated permanent magnet motor (ECM/PM Technology). Cast iron body designed for closed loop hydronic heating and cooling systems pumping water or water/glycol mix. Lead-free bronze body designed for plumbing systems or open loop heating and cooling systems.
Bell & Gossett ecocirc® XL Series ecocirc XL B 65-130 104409LF Circulating Pump, 45 to 825 W, 230 V, 0.5 to 3.5 A
BrandBell & Gossett
MFG #104409LF
Keller #877070
My Part ##
Last Ordered#
$7,956.74 / ea
