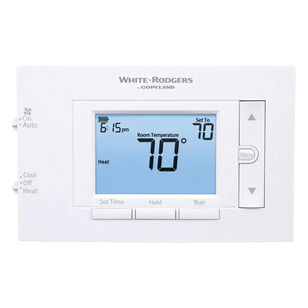

WHITE-RODGERS™ 80 Series 1F83C-11PR Programmable Thermostat, 30 VAC Battery, 20 to 30 VAC Hardwire, 1 to 1.5 A
WHITE-RODGERS™ 80 Series 1F83C-11PR Programmable Thermostat, 30 VAC Battery, 20 to 30 VAC Hardwire, 1 to 1.5 A
WHITE-RODGERS™ Programmable Thermostat, 80 Series, 30 VAC Battery, 20 to 30 VAC Hardwire, 1 to 1.5 A, 50/60 Hz Frequency, Programmability: 5-1-1, 7 day Program, Changeover: Auto, Battery, Hardwired Power Source, 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), 0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Cooling, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Heating Pump (Heating and Cooling), 0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating Pump (Auxiliary) Differential, 45 to 99 deg F Settings, 32 to 105 deg F, 90% Non-Condensing Humidity, +/-1 deg C Accuracy, Horizontal Mounting, Terminal Designation: RC, RH, C, W, Y, O/B, G, RC, RH, C, W, Y, O/B, G Termination, White, Dimensions: 3-3/4 in H x 6 in W x 1-1/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$111.33 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWHITE-RODGERS™
Accuracy+/-1
Amperage Rating1 to 1.5
ApplicationFor 1-stage (1H/1C) and gas, oil, electric, millivolt compatible
ChangeoverAuto
ColorWhite
Differential Temperature0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Cooling, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr
Dimensions3-3/4 " H x 6 " W x 1-1/8 " D
Frequency Rating50/60
Humidity Rating90% Non-Condensing
Mounting TypeHorizontal
Power SourceBattery, Hardwired
Programmability5-1-1, 7 day Program
Series80 Series
Stages1 Heat/1 Cool
Switch PositionHEAT-OFF-COOL (System), AUTO-ON (Fan)
Temperature Rating32 to 105
Temperature Settings45 to 99
Terminal DesignationRC, RH, C, W, Y, O/B, G
TerminationRC, RH, C, W, Y, O/B, G
Voltage Rating30 VAC Battery, 20 to 30 VAC Hardwire
Warranty5 Year Limited
Additional Information
NEC Class II, Energy Aware Qualified
Features & Benefits
- Large display - bright backlight, high contrast screen Selectable programming - standard feature on all programmable models Dual fuel control - no outdoor sensor required, standard on all staging models Advanced features - auto-changeover on universal models, keypad lockout, temperature limits easy-to install - built-in level indicator, simple set up menu, terminal block connections on subbase 80 Series thermostats feature a slim pro le and a modern design 32 to 99 deg F display temperature range Four program periods per day Continuous backlight with common wire Permanent memory Energy management recovery/early start program Filter change reminder
Marketing Information
Emerson™ 80 Series thermostats offer a footprint that fits the install, features that fit the homeowner and support that fits your business. With a large, backlit display, easy-to use design, flexible programming and dependable performance, 80 Series thermostats are the perfect fit for every application.
WHITE-RODGERS™ 80 Series 1F83C-11PR Programmable Thermostat, 30 VAC Battery, 20 to 30 VAC Hardwire, 1 to 1.5 A
BrandWHITE-RODGERS™
MFG #1F83C-11PR
Keller #883674
