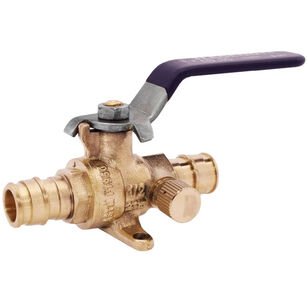

LEG 101-564NL 3/4IN DZR FORGED BRASS COLD EXPANSION PEX (F 1960) BALL VALVE DROP EAR W/DRAIN
LEG 101-564NL 3/4IN DZR FORGED BRASS COLD EXPANSION PEX (F 1960) BALL VALVE DROP EAR W/DRAIN
Legend Valve Drop Ear Ball Valve With Drain, 3/4 in Nominal, PEX Connection, 400 psi, 3.48 in Inlet to Outlet Length, 1.58 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM UNS C46500, Brass Body, PTFE Seat, Brass Stem, PTFE Packing, Steel Handle, Brass Ball, EPDM Softgoods, Lead-Free, 250 deg F, Additional Information: Model T-1960DENL
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$37.26Â /Â ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Additional InformationModel T-1960DENL
Ball MaterialBrass
Body MaterialBrass
Connection TypePEX
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length3.48
Lead-FreeYes
Material StandardASTM UNS C46500
Nominal Size3/4
Operator TypeLever Handle
Packing MaterialPTFE
Pressure Rating400
Seat MaterialPTFE
Softgoods MaterialEPDM
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center1.58
Shipping Dimensions (L x W x H)13.3" x 6.6" x 15.7"
Additional Information
ANSI/ASME B1.20.1|ANSI/ASME B16.18|ASTM F1960|NSF/ANSI 14, 61
Documents
Marketing Information
Dezincification-resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions. Bottom-loaded, blowout-proof stem features a dual-seal PTFE packing and EPDM rubber O-ring design, assuring positive sealing under a multitude of conditions. Self-cleaning stainless steel ball resists mineral build-up and scaling. The drop-ear-drainable configuration, when properly fastened to supports, drastically reduces tubing stress by dispersing the operational twisting force through the valve's body, verses the tubing connections MNPT configuration permits simple, convenient transitioning from pipe to PEX tubing. Sweat end configuration permits a convenient transition from copper to PEX tubing.
