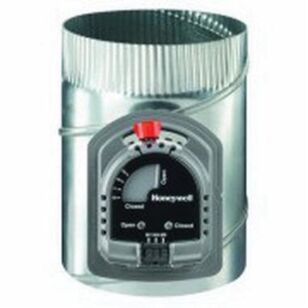

Honeywell ARD5TZ/U Motorized Damper, 5 in Dia, 4-41/64 in W, Round, 24 V, 71 in-lb
Honeywell ARD5TZ/U Motorized Damper, 5 in Dia, 4-41/64 in W, Round, 24 V, 71 in-lb
Honeywell Motorized Damper, ARD Series, 5 in Diameter, 24 V, 60 Hz, VA Rating: 8 VA, Single Blade, 30 s Power Open, 10 s Spring Return Timing, 71 in-lb Torque, 22 ga, 24 ga Gauge, Steel, Finish: Galvanized, Side, Top Mounting, Spring Open, Power Closed Motor, Round Shape, 1 in-WC, 40 to 140 deg F, 3-61/64 in Length, 4-41/64 in Width, 4-31/32 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$375.54Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ApplicationFor Honeywell TrueZONE electronic zoning systems and others applications
Blade TypeSingle
Diameter5
FinishGalvanized
Frequency Rating60
Gauge22 ga, 24 ga
Height4-31/32
Length3-61/64
MaterialSteel
Motor TypeSpring Open, Power Closed
Mounting TypeSide, Top
Pressure Rating1
SeriesARD Series
ShapeRound
Temperature Rating40 to 140
Timing Range30 s Power Open, 10 s Spring Return
Torque Rating71
VA Rating8
Voltage Rating24
Width4-41/64
Features & Benefits
- Power-close, spring open model ensure low leakage while controlling circulating air in heating, cooling and ventilation system With single blade damper, which closes off tightly against gasket for minimal leakage Designated as power closed/spring return open damper for use with honeywell zoning systems Can be field converted when used as an independent zone or for fresh air intake Terminals M1-power, M6 common, M4 (optional) LED indication wires to motor Adjustable close position range stops Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct Fail safe, normally open operation Simple, easy to wire, two-wire (M1 and M6) installation Less than 1% at 1/2 in-WC leakage Clockwise, when energized and viewed from the base or shaft end motor shaft rotation direction Direct connection to damper shaft Multipoise motor-mounting position 90 deg motor nominal angular rotation Push terminal connection 0.0329 in-WC at 800 fpm pressure drop maximum full open
Honeywell ARD5TZ/U Motorized Damper, 5 in Dia, 4-41/64 in W, Round, 24 V, 71 in-lb
BrandHoneywell
MFG #ARD5TZ/U
Keller #888414
My Part ##
Last Ordered#
$375.54Â /Â ea
