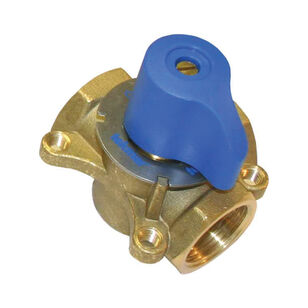

Tekmar® 711 Mixing Valve, 1 in, FNPT, 146 psi, Brass
Tekmar® 711 Mixing Valve, 1 in, FNPT, 146 psi, Brass
Tekmar® Mixing Valve, 1 in Nominal, FNPT Connection, Number of Ports/Ways: 3-Ways, 146 psi, 14 Cv Flow Coefficient (Cv), Manual Operator, EPDM Seal, Brass, Chilled/Hot Water with Antifreeze, Ethylene Glycol, Propylene Glycol, Methanol, Ethanol, Isopropanol and Anticorrosive Compounds Media, -20 to 248 deg F, 1-1/2 in H x 3 in W x 3-5/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$455.00 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTekmar®
Connection TypeFNPT
Dimensions1-1/2 " H x 3 " W x 3-5/8 " D
Flow Coefficient (Cv)14
IndustryHydronics
MaterialBrass
MediaChilled/Hot Water with Antifreeze, Ethylene Glycol, Propylene Glycol, Methanol, Ethanol, Isopropanol and Anticorrosive Compounds
Nominal Size1
Number of Ports/Ways3-Ways
Operator TypeManual
Pressure Rating146
Seal MaterialEPDM
Temperature Rating-20 to 248
Features & Benefits
- Brass construction to resist-corrosion
Marketing Information
The three way brass mixing valve 711 is used to mix supply water from a hydronic source with water returning from a system. It is designed for use in either closed loop or open loop hydronic systems. This three way valve has standard female NPT threads, as well as a maximum leak through rate of 1% to allow for water expansion during temperature changes. The valve position can be manually set using the handle. An actuating motor 741 can be used to automatically operate the valve.
Tekmar® 711 Mixing Valve, 1 in, FNPT, 146 psi, Brass
BrandTekmar®
MFG #711
Keller #89269
