VICF V040766900 4IN GRV BFV NORM CLOSED
VICF V040766900 4IN GRV BFV NORM CLOSED

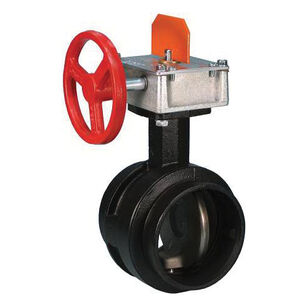

Victaulic® High Pressure Butterfly Valve With Weatherproof Actuator, 766 Series, 4 in Nominal, Grooved Connection, 365 psi, Water Media, Handwheel Operator, 820 Cv Flow Coefficient (Cv), Material Standard: ASTM A536 Grade 65-45-12, ASTM D2000, C95500, C83600, Iron Body, Nitrile Seat, 416 Stainless Steel Stem, Nitrile Seal, Iron Disc, 416 Stainless Steel/Ductile Iron/Nitrile Trim, Nitrile Softgoods, 5-1/2 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,355.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandVictaulic®
ApplicationFor fire protection services only
Body MaterialIron
Connection TypeGrooved
Dimensions5-1/2 " W
Disc MaterialIron
Flow Coefficient (Cv)820
Includes2 in NPT Drain Valve
Material StandardASTM A536 Grade 65-45-12, ASTM D2000, C95500, C83600
MediaWater
Nominal Size4
Operator TypeHandwheel
Pressure Rating365
Seal MaterialNitrile
Seat MaterialNitrile
Series766 Series
Softgoods MaterialNitrile
Stem Material416 Stainless Steel
Trim Material416 Stainless Steel/Ductile Iron/Nitrile
Additional Information
CE Marked|cULus Listed|FM Approved|LPCB Listed|VDS Approved|UKCA Approved
Features & Benefits
- Design to be supervised closed during normal operating conditions High-pressure butterfly valve with an approved weather-proof actuator housing for indoor or outdoor use
Documents
Marketing Information
Victaulic® FIRELOCK™ NXT™ Series 764 alternate valve is a low differential, latched clapper valve that uses a unique direct acting diaphragm to separate system water supplies from dry pipe sprinkler systems. This valve offers a trim system that accommodates both wet and dry systems and is field convertible.
