ADA Compliant|CSA B45.5|IAPMO PS106-2015e1|IAPMO Z124-2011|ICC PMG 1223|IPC 2015/2012/2009|IRC 2015/2012/2009|NPC 2010/2005|QAI Laboratories RJ4241-1|UPC 2015/2012/2009

• Made from compression molded glass fiber reinforced plastic (GRP) for reliable strength 840 lb max capacity when installed on 16 in OC Joist systems, enough to support a wheelchair user and carer Waffle underside ensures rigidity while being lightweight (approx. 60 lb) Install on wooden joists (no need to notch, lower or alter joists), sub-floor or concrete Can be cut down to size on all sides using standard power tools (within 6 in of drain) Extend length of pitch to comply with ADA regulations using pitch extension panels Rotate off-center drain hole to avoid conflicts between drain and any sub-floor obstructions Four pre-sloped gradient planes direct water flow towards drain 2% per foot or greater gradient (varies due to length of pitch) 7/8 in THK around perimeter 1-3/4 in W leveling rim around perimeter with pre-bored, countersunk pilot holes Finish with tile or stone (between 1/4 to 1 in THK) or commercial-grade weldable vinyl flooring For tile that is 2 x 2 in or smaller, conform to the pitched contours of the base, for tile larger than 2 x 2 in, make valley cuts so the tile lays properly on all pre-pitched surfaces You will need an AKW waterproofing kit and classic drain assembly

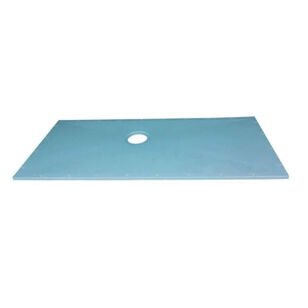

Curbless Tuff form shower bases are made from lightweight yet incredibly strong compression molded glass fiber reinforced plastic (GRP) which offers superior support for wheelchair users and/or those needing assistance with showering and is the perfect foundation for ceramic tile, natural stone or weldable vinyl flooring. Showers built on Tuff form shower bases offer the timeless advantages of zero entry access which is designed to be wheelchair and disability friendly, as well as easier to clean and safer to use for the whole family, for years to come.
