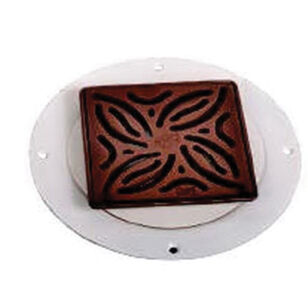

ARC TrueDEK Classic CD1230-ORB Swirl Pattern Drain Assembly, 2 in Nominal, Solvent Weld, Stainless Steel Grid
ARC TrueDEK Classic CD1230-ORB Swirl Pattern Drain Assembly, 2 in Nominal, Solvent Weld, Stainless Steel Grid
ARC Swirl Pattern Drain Assembly, TrueDEK Classic Collection, 2 in Nominal, Solvent Weld Connection, ABS Drain, Stainless Steel Grid, Finish: Oil-Rubbed Bronze, For Use With: TrueDEK Classic Tiled Shower Bases
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$314.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandARC
CollectionTrueDEK Classic
Connection TypeSolvent Weld
Drain MaterialABS
FinishOil-Rubbed Bronze
Grid MaterialStainless Steel
IndustryPlumbing
Nominal Size2
Suitable For Use WithTrueDEK Classic Tiled Shower Bases
WarrantyLimited Lifetime
Shipping Dimensions (L x W x H)9" x 9" x 5"
Additional Information
ASME A112.18.2 Specified|CSA B125.2-2011 Certified|ICC PMG-1222 with IRC, IPC Listed|UPC and NPC Certified
Features & Benefits
- Grate and frame made of stainless steel Drain assembly parts made of ABS plastic Drain connector made of PVC plastic Height adjustment allows for matching grate elevation to match tile surface (from 1/4 to 1 in) Maximum flow rate of 6 gal/m (consult a qualified plumber to calculate needs for a high water flow shower)
Documents
ARC TrueDEK Classic CD1230-ORB Swirl Pattern Drain Assembly, 2 in Nominal, Solvent Weld, Stainless Steel Grid
BrandARC
MFG #CD1230-ORB
Keller #892996
