CSA B45.5|IAPMO PS106-2015e1|IAPMO Z124-2011|ICC PMG 1223|IPC 2015/2012/2009|IRC 2015/2012/2009|NPC 2010/2005|QAI Laboratories RJ4241-1|UPC 2015/2012/2009

• 560 lb max capacity when installed on 16 in O.C. Joist systems Install on wooden joists (no need to notch, lower or alter joists), sub-floor or concrete Cannot be cut or trimmed due to the internal structure of the base Extend length of pitch to comply with ADA regulations using pitch extension panels Four pre-sloped gradient planes direct water flow towards drain 2% per foot or greater gradient Integrated drain gulley with up to three locations for you to connect to the drain line During installation, ensure the drain gulley hangs between joists for clear access to drain line 7/8 in THK around perimeter 1-3/4 in W leveling rim around perimeter with pre-bored, countersunk pilot holes Finish with tile or stone (between 1/4 to 1 in THK) For tile that is 2 x 2 in or smaller, conform to the pitched contours of the base, for tile larger than 2 x 2 in, make valley cuts so the tile lays properly on all pre-pitched surfaces You will need an AKW waterproofing kit and Tuff form linear drain cover

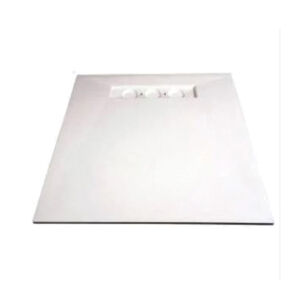

TriForm shower bases feature a fully integrated drain gulley molded directly into a structural, pre-pitched base that can support a maximum capacity of 560 lb and can be beautifully finished with ceramic tile or natural stone. Precisely sloped to ensure quick, accurate drainage, TriForm linear can be installed directly onto joists to create a curbless shower flush with the bathroom floor, making them wheelchair and disability friendly, as well as easier to clean and safer to use for the whole family, for years to come.
