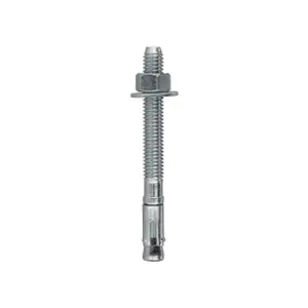

Dottie® W38334 Wedge Anchor, 3/8 in Dia, 2-5/8 in L, 3/8 in Drill, 2-5/8 in L Thread, Carbon Steel, Zinc-Plated
Dottie® W38334 Wedge Anchor, 3/8 in Dia, 2-5/8 in L, 3/8 in Drill, 2-5/8 in L Thread, Carbon Steel, Zinc-Plated
Dottie® Wedge Anchor, 3/8 in Dia, 2-5/8 in Length, 3/8 in Drill, 2-5/8 in L Thread, 16, 2-1/2 in, 25 ft-lb Torque, Carbon Steel, Zinc-Plated, Additional Information: UNC Thread, 3/8 in Drill Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3.55 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandDottie®
Additional InformationUNC Thread, 3/8 " Drill Size
ApplicationNormal and Lightweight Concrete, Seismic Zones, Crack and Uncracked Concrete Applications
Diameter3/8
Drill Size3/8
FinishZinc-Plated
IncludesNut and Washer
IndustryPlumbing
Length2-5/8
MaterialCarbon Steel
Minimum Embedment2-1/2
Thread Size2-5/8 " L
Threads per Inch16
Torque Rating25
Shipping Dimensions (L x W x H)6.1" x 4.7" x 3"
Additional Information
ICC ES PMG Certified|RoHS Compliant
Features & Benefits
- Dependable performance in variety of concrete strengths Pilot on hammered end to prevent first thread damage Non-bottom bearing anchor Can be installed through fixture on standard size holes Length ID and identifiable marking stamped on head Fully threaded
Marketing Information
Wedge anchors are manufactured with a carbon steel body and expansion clip and are designed for normal and lightweight concrete. These fully threaded expanding anchors are ICC-ESR listed for seismic zones, cracked and uncracked concrete. They feature a pilot on the hammered end to prevent first thread damage and are a non-bottom-bearing anchor. Common applications for use include structural connections, cable trays, strut, fire sprinklers and piping supports in concrete substrate. For installation instructions and weight loads, reference the technical data sheet.
