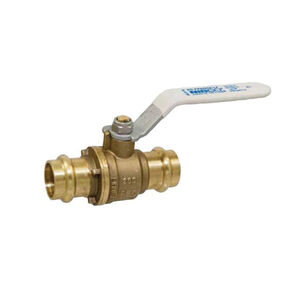

NIBCO PCFP600ALF 1/2 PRESS BALL VLV
NIBCO PCFP600ALF 1/2 PRESS BALL VLV
NIBCO® Press System® 2-Piece Ball Valve, PC-FP-600A-LF Series, 1/2 in Nominal, Female Press Connection, Full Port, 250 psi, Water Media, 2.87 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, 0.631 in Opening, Lever Handle Operator, Material Standard: ASTM D2000, Copper Body, PTFE Seat, Brass Stem, PTFE Seal, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 250 deg F, 4.57 in L, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$112.80 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor drinking water, domestic hot and cold water, HVAC (condensers, chilled water, hot water heating), isolation and throttling (half open to full open only), connect to rigid copper tubing applications
Ball MaterialBrass
Body MaterialCopper
Connection TypeFemale Press
Dimensions4.57 " L
Domestic/ImportImport
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.87
Lead-FreeYes
Material StandardASTM D2000
MediaWater
Nominal Size1/2
Opening Size0.631
Operator TypeLever Handle
Port TypeFull
Pressure Rating250
Seal MaterialPTFE
Seat MaterialPTFE
SeriesPC-FP-600A-LF Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center2.09
Warranty2 Year Limited
Shipping Dimensions (L x W x H)1.24" x 2.01"
Additional Information
ASME B16.51|cUPC Certified|IAPMO/ANSI Z1157 (IGC-157)|MSS SP 145|NSF/ANSI 61/372
Features & Benefits
- Valve pressure rating 250 psi non-shock cold working pressure Maximum service temperature 250 deg F Copper to copper connections Blowout-proof stem Reinforced PTFE seat rings Press leak detection feature Dezincification-resistant Not intended for gas use
Marketing Information
The NIBCO® Press System® is user friendly, quick and easy-to install. When properly crimped a unique N witness mark is clearly visible. The lead-free ball valve is specifically designed for use in systems that deliver water for human consumption. NIBCO® Press System® applies the proven performance of press technology to NIBCO® valves and fittings - the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
NIBCO PCFP600ALF 1/2 PRESS BALL VLV
BrandNIBCO®
MFG #NF998K6
Keller #897205
