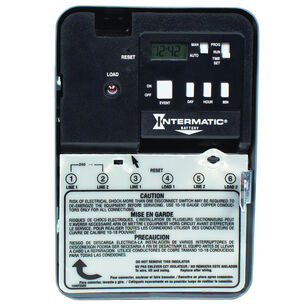

Intermatic® EH Series EH40 Electronic Water Heater Time Switch, Time Settings: 7 days, 240 VAC, 1-1/2 hp, 2NO 1DPST
Intermatic® EH Series EH40 Electronic Water Heater Time Switch, Time Settings: 7 days, 240 VAC, 1-1/2 hp, 2NO 1DPST
Intermatic® Electronic Water Heater Time Switch, Series: EH Series, 240 VAC, 30 A, 60 Hz, 7200 W, 1-1/2 hp HP Rating, Switch Rating: 30 A Inductive, 30 A Resistive, 5 A Tungsten, 2 Pole, 1 Channels, 2NO 1DPST, 7 days Time Settings, 1 min to 7 days, 10 AWG Wire, 42 Pulse Events, Alkaline Battery, Wall Mount, Lead Wire, Teeter Terminal, NEMA 1, -40 to 104 deg F, Metal Enclosure, 7-3/4 in Height, 5 in Width, 3 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Amperage Rating30
ApplicationAgriculture Feeders, Greenhouse Misting Control and Water Heater Control
Battery TypeAlkaline
Contact Configuration2NO 1DPST
Depth3
Enclosure MaterialMetal
Enclosure TypeNEMA 1
Frequency Rating60
Height7-3/4
HP Rating1-1/2
IndustryLeisure
Mounting TypeWall
Number of Channels1
Number of Poles2
Number of Pulse Events42
Power Rating7200
SeriesEH Series
Switch Rating30 A Inductive, 30 A Resistive, 5 A Tungsten
Temperature Rating-40 to 104
Terminal TypeLead Wire, Teeter
Time Settings7
Timing Range1 min to 7 days
Voltage Rating240
Warranty1 Year Limited
Width5
Wire Size10
Shipping Dimensions (L x W x H)5.5" x 3.5" x 8.25"
Additional Information
CSA Certified
Features & Benefits
- 42 on/off events per week 7 days scheduling External override switch LED load indicator Replaceable battery backup
Documents
Marketing Information
The EH Series electronic time switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to off-peak time periods to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5 days work week scheduling, weekend scheduling or individual day scheduling.
Intermatic® EH Series EH40 Electronic Water Heater Time Switch, Time Settings: 7 days, 240 VAC, 1-1/2 hp, 2NO 1DPST
BrandIntermatic®
MFG #EH40
Keller #897301
