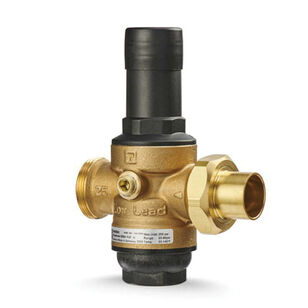

resideo Dial Set® DS06 Series DS06-102-SUS-LF/U Pressure Regulating Valve, 1 in Nominal, Sweat, 250 psi, 33 to 140 deg F
resideo Dial Set® DS06 Series DS06-102-SUS-LF/U Pressure Regulating Valve, 1 in Nominal, Sweat, 250 psi, 33 to 140 deg F
resideo Dial Set® Pressure Regulating Valve, DS06 Series, 1 in Nominal, Sweat Connection, Single Union, 250 psi, Water Media, Bronze Body, Plastic Seat, Stainless Steel Stem, 33 to 140 deg F, 5-15/64 in L x 6-15/16 in H, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$332.37 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Body MaterialBronze
ConfigurationSingle Union
Connection TypeSweat
Dimensions5-15/64 " L x 6-15/16 " H
Domestic/ImportImport
IndustryHVAC
MediaWater
Nominal Size1
Pressure Rating250
Seat MaterialPlastic
SeriesDS06 Series
Stem MaterialStainless Steel
Temperature Rating33 to 140
Additional Information
ASSE 1003|CSA Certified|cUPC Certified|IAPMO Listed|Low Lead Compliant
Features & Benefits
- Built-In Dial-Set™- no guage is needed to install or set static pressure Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications Install it just about anywhere The internal and external threading allows for use in thread-by-thread, singleunion or double-union configurations 1/4" NPT tap accessible from both sides to validate output Built in strainer to simplify maintenance Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant
Marketing Information
The DS06 Dial Set® Pressure Regulating Valve from Resideo is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
resideo Dial Set® DS06 Series DS06-102-SUS-LF/U Pressure Regulating Valve, 1 in Nominal, Sweat, 250 psi, 33 to 140 deg F
Brandresideo
MFG #DS06-102-SUS-LF/U
Keller #897335
My Part ##
Last Ordered#
$332.37 / ea
