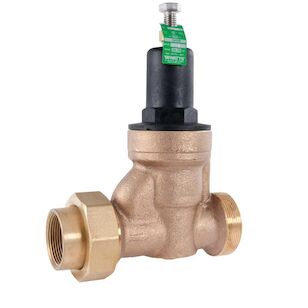

WATTS® LFN45B Series 0009526 Pressure Reducing Valve, 2 in Nominal, Union NPT x FNPT, 300 psi, 33 to 180 deg F
WATTS® LFN45B Series 0009526 Pressure Reducing Valve, 2 in Nominal, Union NPT x FNPT, 300 psi, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LFN45B Series, 2 in Nominal, Union NPT x FNPT Connection, 300 psi, Water Media, 8-7/8 in Top to Inlet Center, Copper Silicon Body, Thermoplastic Seat, EPDM Disc, EPDM/Thermoplastic Trim, Lead-Free, 33 to 180 deg F, 3-11/16 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,376.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon
Connection TypeUnion NPT x FNPT
Dimensions3-11/16 " W
Disc MaterialEPDM
MediaWater
Nominal Size2
Pressure Rating300
Seat MaterialThermoplastic
SeriesLFN45B Series
Temperature Rating33 to 180
Top to Inlet Center8-7/8
Trim MaterialEPDM/Thermoplastic
Shipping Dimensions (L x W x H)13.375" x 10.44" x 4.06"
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|cUPC Certified|IAPMO Listed
Features & Benefits
- Lead-free body construction Integral stainless steel strainer Sealed spring cage for accessible outdoor or pit installations
Documents
Marketing Information
This 2 in lead-free water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a brass body, integral stainless steel strainer and thermal expansion bypass. It features NPT threaded union by NPT female end connections. The maximum working pressure is 300 psi (21 bar) and may be adjusted from 25 to 75 psi (172 to 517 kPa). The standard setting is 50 psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line.
WATTS® LFN45B Series 0009526 Pressure Reducing Valve, 2 in Nominal, Union NPT x FNPT, 300 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009526
